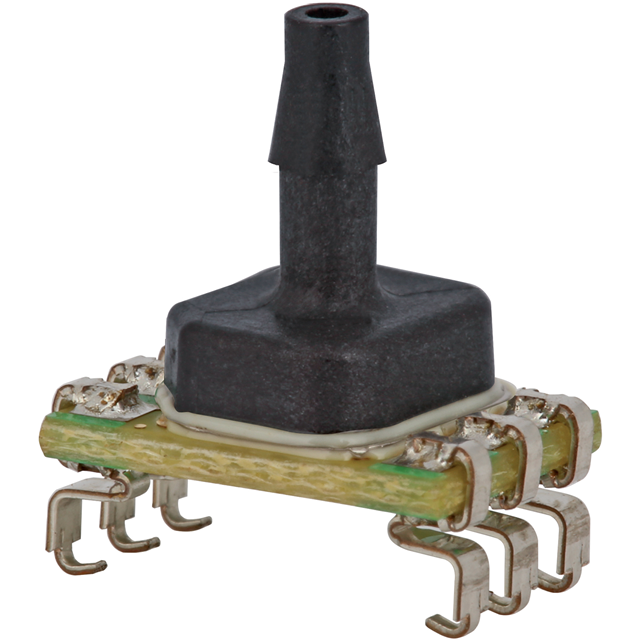

ABP2MANT001BGAA5XX

Product Detailed Parameters

• Description：SENSOR 14.5PSIG 0.108" 4.5V 6SMD
• Series：ABP2
• Mfr：Honeywell Sensing and Productivity Solutions
• Package：Box
• Applications：-
• Pressure Type：Gauge
• Operating Pressure：14.5PSI (100kPa)
• Output Type：Analog Voltage
• Output：0.5 V ~ 4.5 V
• Accuracy：±0.25%
• Voltage - Supply：4.75V ~ 5.25V
• Port Size：Male - 0.108" (2.74mm) Tube
• Port Style：Barbed
• Features：Amplified Output, Temperature Compensated
• Termination Style：J Lead
• Maximum Pressure：232.06PSI (1600kPa)
• Operating Temperature：-40°C ~ 110°C
• Mounting Type：Surface Mount
• Package / Case：6-SMD, J-Lead, Top Port
• Supplier Device Package：6-SMD
• Grade：-
• Qualification：-
