ABS04W-32.768KHZ-4-B2-T5

Crystals Overview

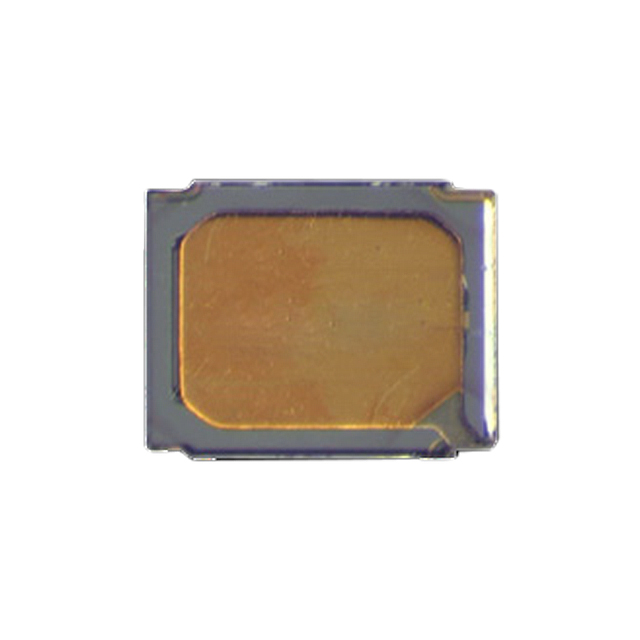

The Abracon ABS04W-32.768KHZ-4-B2-T5 is a surface-mount quartz crystal resonator with a nominal frequency of 32.768 kHz. It features a compact 1.2 x 1.0 mm SMD package with a height of 0.35 mm. The component has a load capacitance (CL) of 4 pF and a frequency tolerance of ±20 ppm at 25°C. The maximum equivalent series resistance (ESR) is 130 kΩ. It operates within a temperature range of -20°C to +70°C.

Crystals Feature Summary

• Ultra-compact 1.2 x 1.0 mm footprint suitable for space-constrained designs
• Low profile 0.35 mm height for thin device integration
• Optimized low load capacitance for reduced power consumption
• Sealed construction ensuring reliability in IoT applications

Crystals Applications

• Real-time clock circuits in wearable devices
• Bluetooth Low Energy modules
• Smart home sensors
• Compact consumer electronics

Crystals Procurement Notes

Verify the specific suffix B2 against the official datasheet to confirm the exact temperature rating and packaging configuration. Ensure the 4 pF load capacitance matches the oscillator circuit requirements. Confirm RoHS compliance status for the specific batch. Cross-reference the manufacturer's latest documentation to validate availability and lead times before finalizing procurement.

Crystals Selection Notes

Select this component when board space is limited due to its small 1.2 x 1.0 mm dimensions. The 4 pF load capacitance requires matching with the host MCU's internal or external capacitors. Verify that the 130 kΩ ESR is compatible with the oscillator's drive level. Ensure the operating environment stays within the specified -20°C to +70°C range.

Crystals Part Context

This part belongs to the ABS04W series, designed specifically for ultra-small form factor applications. It serves as a timekeeping reference for microcontrollers and RTCs. The series emphasizes miniaturization while maintaining stable oscillation characteristics for portable and wearable technology sectors.

Crystals Replacement Considerations

ABS04W-32.768KHZ-4-B1-T5: Similar specifications with potential differences in packaging or tolerance grades. ABS05W-32.768KHZ-4-B2-T5: Larger 2.0 x 1.2 mm package but similar electrical parameters. Verify pin compatibility and thermal performance before substitution.
