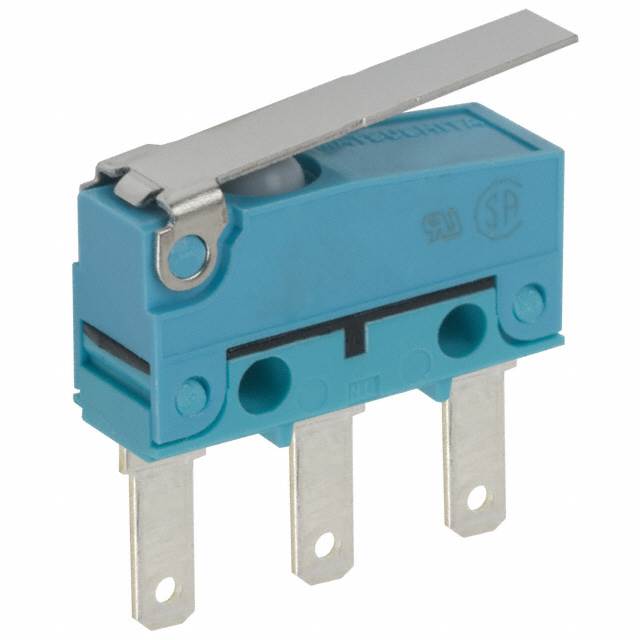

Limit Switches ABS1112503 product image

ABS1112503

$2.05

Description：SWITCH SNAP ACTION SPDT 2A 125V
Series：ABS
Mfr：Panasonic Electric Works
Package：Bulk

SKU:71adc1145d03 Category: Limit Switches Brand: Panasonic Electric Works

ChipApex WhatsApp

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ABS1112503 is listed in the Limit Switches range at ChipApex. The manufacturer field lists Panasonic Electric Works. Its product description is SWITCH SNAP ACTION SPDT 2A 125V. Review the specifications below when checking this part for your BOM.

Limit Switches specifications for ABS1112503

Description：SWITCH SNAP ACTION SPDT 2A 125V
Series：ABS
Mfr：Panasonic Electric Works
Package：Bulk
Circuit：SPDT
Switch Function：On-Mom
Current Rating (Amps)：2A (AC/DC)
Voltage Rating - AC：125 V
Actuator Type：Lever, Straight
Mounting Type：Chassis Mount
Termination Style：Quick Connect - 0.110" (2.8mm)
Ingress Protection：IP50 - Dust Protected
Features：-
Operating Force：55gf
Release Force：3.500gf
Operating Position：0.345" (8.8mm)
Pretravel：0.110" (2.8mm)
Differential Travel：0.031" (0.8mm)
Overtravel：0.047" (1.2mm)
Operating Temperature：-40°C ~ 85°C
Voltage Rating - DC：30 V

Limit Switches datasheet and documents for ABS1112503
