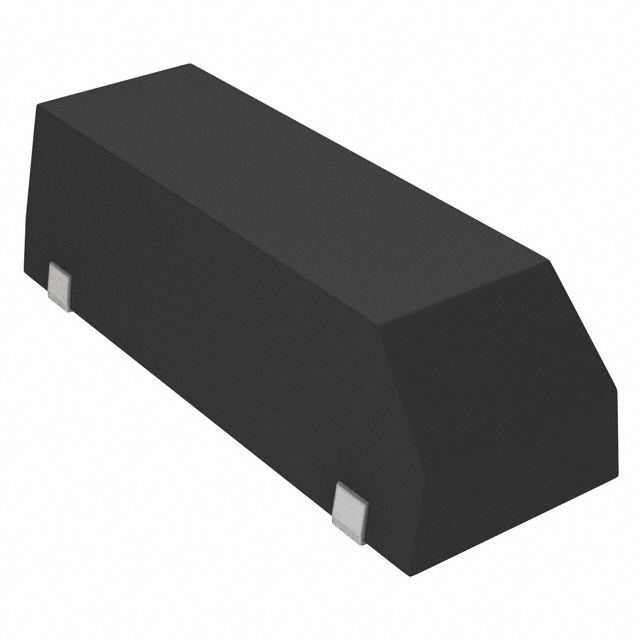

ABSM2-14.31818MHZ-4-T

$0.78

Description：CRYSTAL 14.31818MHZ 18PF SMD
Series：ABSM2
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:fa6c7de879fe Category: Crystals Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ABSM2-14.31818MHZ-4-T is listed in the Crystals range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is CRYSTAL 14.31818MHZ 18PF SMD. Review the specifications below when checking this part for your BOM.

Crystals specifications for ABSM2-14.31818MHZ-4-T

Description：CRYSTAL 14.31818MHZ 18PF SMD
Series：ABSM2
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
Type：MHz Crystal
Frequency：14.31818 MHz
Frequency Stability：±50ppm
Frequency Tolerance：±30ppm
Load Capacitance：18pF
ESR (Equivalent Series Resistance)：50 Ohms
Operating Mode：Fundamental
Operating Temperature：-10°C ~ 60°C
Ratings：-
Mounting Type：Surface Mount
Package / Case：4-SOJ, 9.40mm pitch
Supplier Device Package：-
Size / Dimension：0.492" L x 0.181" W (12.50mm x 4.60mm)
Height - Seated (Max)：0.146" (3.70mm)

Crystals datasheet and documents for ABSM2-14.31818MHZ-4-T

ABSM2-14.31818MHZ-4-T

Crystals Overview

The ABSM2-14.31818MHZ-4-T is a surface-mount parallel fundamental quartz crystal manufactured by Abracon LLC. It operates at a nominal frequency of 14.31818 MHz with an 18 pF load capacitance. The component utilizes the HC/49US package style, featuring a low-profile design suitable for thin equipment applications. It supports RoHS compliant reflow soldering processes and offers tight stability options for reliable performance in various electronic circuits requiring precise timing signals.

Crystals Feature Summary

Surface-mount parallel fundamental quartz crystal construction
Low-profile physical dimensions optimized for thin equipment
RoHS compliant reflow soldering capability
Hermetically sealed package ensuring high reliability

Crystals Applications

Wireless communication devices
Microprocessor clock generation
Computer peripheral interfaces
Modem synchronization circuits

Crystals Procurement Notes

Verify the specific lot code and manufacturing date against current production status before procurement. Confirm that the 18 pF load capacitance matches the target circuit design requirements. Ensure the surface-mount footprint aligns with the PCB layout specifications to prevent assembly defects during the reflow process.

Crystals Selection Notes

Select this component when a low-profile surface-mount crystal is required for 14.31818 MHz applications. Consider the HC/49US form factor for compatibility with existing footprints. Evaluate the operating temperature range and stability requirements against the system's environmental conditions to ensure long-term frequency accuracy.

Crystals Part Context

This part belongs to Abracon's line of standard surface-mount crystals designed for general-purpose timing applications. It serves as a passive component within oscillator circuits, providing the resonant frequency necessary for digital logic synchronization. The series is engineered for high-volume manufacturing environments requiring consistent quality and reliability.
