ABSNS6A7-1AKM011M

Overview

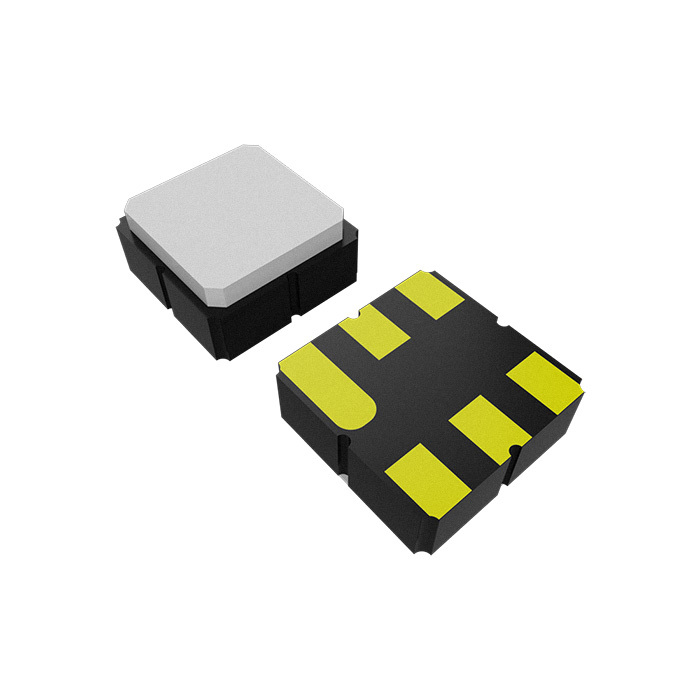

The ABSNS6A7-1AKM011M is a Surface Acoustic Wave (SAW) bandpass filter manufactured by Abracon LLC. It operates at a center frequency of 836.5 MHz with a bandwidth of 25 MHz. The device features an insertion loss of 2.4 dB and is designed for 50 Ohm impedance systems. It supports input power levels ranging from 10 dBm to 15 dBm and is rated for 5V DC voltage. The component is housed in a compact 6-SMD package measuring 3.0 x 3.0 x 1.3 mm.

Feature Summary

• Provides superior selectivity with high out-of-band rejection capabilities
• Engineered for general purpose RF signal conditioning applications
• Utilizes Surface Acoustic Wave technology for efficient filtering

Applications

• RF signal processing in communication systems
• General purpose radio frequency filtering
• Signal conditioning in electronic devices requiring 836.5 MHz bandpass characteristics

Procurement Notes

Verify the specific datasheet version and RoHS compliance status directly with Abracon LLC or authorized distributors before procurement. Confirm that the 6-SMD package dimensions and pinout match your PCB layout requirements. Ensure that the operating environment remains within the specified electrical limits, including the 5V DC rating and maximum input power constraints, to maintain performance integrity.

Selection Notes

Select this component when a narrow 25 MHz bandwidth is required around the 836.5 MHz center frequency. It is suitable for designs needing low insertion loss of 2.4 dB in a small 3.0 x 3.0 mm footprint. Consider its 50 Ohm impedance matching for standard RF interfaces. Evaluate thermal and power handling against the 10-15 dBm input specification during system integration.

Part Context

This part belongs to Abracon's SAW filter portfolio, specifically designed for surface-mount assembly. The ABSNS6A7 series indicates a standardized form factor optimized for automated placement. As a signal conditioning component, it serves to isolate specific frequency bands within RF circuits, distinguishing it from broadband amplifiers or passive attenuators.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Verify compatibility with any alternative components by ensuring identical center frequency, bandwidth, impedance, and package dimensions.
