ABSTS5A2-1CHM011M

Overview

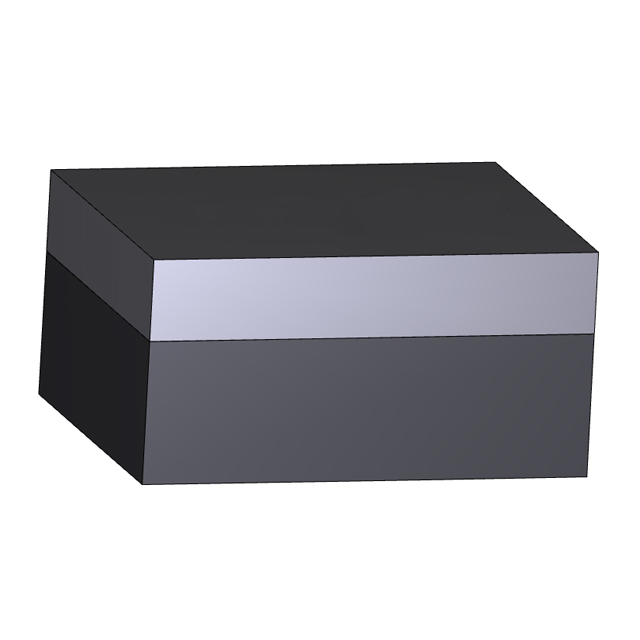

The ABSTS5A2-1CHM011M is a Surface Acoustic Wave (SAW) bandpass filter manufactured by Abracon LLC. It operates at a center frequency of 881.5 MHz with a bandwidth of 25 MHz, designed for cellular and CDMA RF applications. The device features an insertion loss of 1.3 dB and is housed in a compact 5-SMD, no-lead package measuring 1.1 mm in length, 0.9 mm in width, and 0.55 mm in height.

Feature Summary

• Utilizes Surface Acoustic Wave technology for signal filtering
• Optimized for cellular and CDMA radio frequency applications
• Compact surface-mount design for space-constrained PCBs

Applications

• Cellular communication systems
• CDMA network infrastructure
• RF front-end modules

Procurement Notes

Verify the specific part number ABSTS5A2-1CHM011M against official Abracon documentation to confirm current availability and compliance status. Ensure that the 5-SMD no-lead package dimensions match your board layout requirements. Cross-reference technical specifications such as center frequency and insertion loss with your system design needs before finalizing procurement decisions.

Selection Notes

Select this component when a SAW filter is required for 881.5 MHz cellular or CDMA bands. Consider the 1.3 dB insertion loss and 25 MHz bandwidth relative to system sensitivity. The small 5-SMD footprint suits high-density designs. Verify compatibility with operating frequencies and environmental conditions specified in the datasheet.

Part Context

This component belongs to the ABSTS5A2 series of SAW filters from Abracon. These devices are engineered for RF signal conditioning in wireless communications. The series offers various center frequencies tailored to specific cellular standards, providing reliable performance in mobile device and base station applications.

Replacement Considerations

No public substitute part numbers are confirmed for this specific model.
