ABSTS5A2-22NM024M

Overview

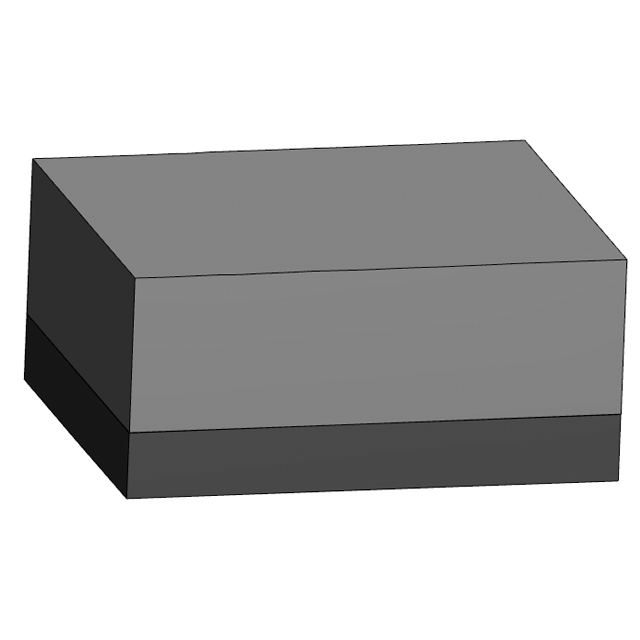

The ABSTS5A2-22NM024M is a Surface Acoustic Wave (SAW) filter manufactured by Abracon LLC, designed for GPS RF applications. It operates at a center frequency of 1.223 GHz with a bandwidth of 52 MHz. The component features an insertion loss range of 1.8 to 2.6 dB and maintains a nominal impedance of 50 Ohms. It utilizes a compact 5-SMD, no lead package with dimensions of 1.1 x 0.9 x 0.5 mm. The device supports surface mount technology (SMD/SMT) termination styles.

Feature Summary

• Optimized for Global Positioning System (GPS) radio frequency signal conditioning
• Compact surface-mount design suitable for space-constrained electronic assemblies
• Provides stable impedance matching within standard RF circuit architectures

Applications

• GPS receiver front-end filtering
• Satellite navigation system modules
• RF signal conditioning in mobile devices

Procurement Notes

Verify the specific datasheet version for precise electrical tolerances and mechanical drawings before integration. Confirm that the 5-SMD package footprint matches the target PCB layout. Ensure supply chain sources provide authentic Abracon components to guarantee performance reliability in critical navigation systems.

Selection Notes

Select this component when a narrow-band SAW filter is required specifically for the 1.223 GHz GPS L1 band. Consider the low profile and small footprint for dense circuit board designs. Evaluate the insertion loss specifications against system sensitivity requirements to ensure adequate signal integrity without excessive amplification needs.

Part Context

This part belongs to the ABSTS5A2 series of SMD SAW filters from Abracon. The series covers a frequency range from 869 MHz to 2483 MHz with varying bandwidths up to 83.5 MHz. These filters are engineered for high-performance RF applications requiring precise frequency selection and noise rejection in compact form factors.

Replacement Considerations

Cross-reference with other Abracon ABSTS5A2 variants such as ABSTS5A2-2HMM01MM for different frequency bands. Verify compatibility with any direct substitute parts by comparing center frequency, bandwidth, and physical package dimensions to ensure seamless replacement in existing designs.
