ABSTS5A2-3H4M02CM

Overview

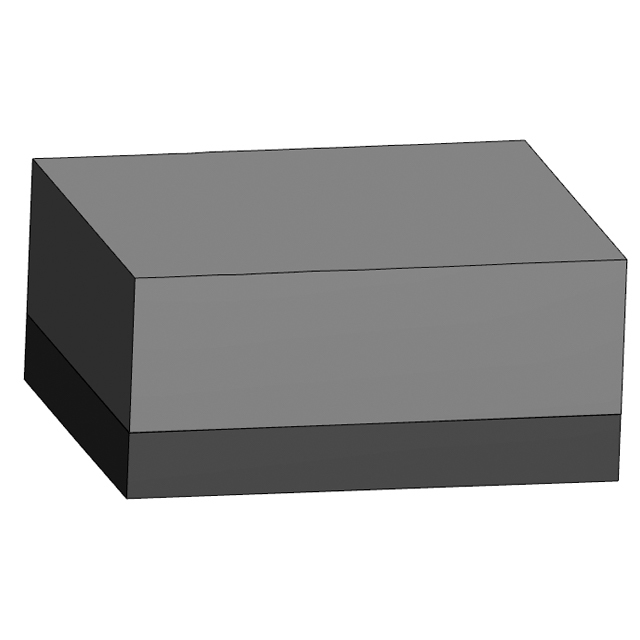

The ABSTS5A2-3H4M02CM is a Surface Acoustic Wave (SAW) filter manufactured by Abracon LLC, designed for mobile phone and cellular system applications. It operates at a center frequency of 2140 MHz with a bandwidth of 60 MHz. The component features a low insertion loss of 1.9 dB and maintains a 50-ohm impedance. It is housed in a compact SMD package measuring 1.1 mm x 0.9 mm x 0.5 mm. The device supports an operating temperature range from -30°C to +85°C and complies with RoHS standards.

Feature Summary

• Compact surface-mount design suitable for space-constrained mobile devices
• Low insertion loss for efficient signal transmission
• Automotive-grade qualification ensuring reliability in harsh environments

Applications

• Mobile phone RF front-end modules
• Cellular communication systems
• Wireless infrastructure components

Procurement Notes

Verify the specific datasheet version and AEC-Q200 certification status directly with Abracon or authorized distributors before procurement. Ensure compatibility with your PCB footprint and reflow soldering profile requirements. Confirm that the 2140 MHz center frequency aligns precisely with your target cellular band specifications to avoid performance degradation in final assembly.

Selection Notes

Select this component when a small form factor SAW filter is required for 2140 MHz applications. Consider its low insertion loss and wide operating temperature range compared to standard commercial parts. Evaluate the 1.1x0.9mm package dimensions against available board space constraints. Verify that the 60 MHz bandwidth meets the specific channel requirements of your cellular system design.

Part Context

This part belongs to the ABSTS5A2 series of SAW filters from Abracon. The series is engineered for high-performance RF filtering in wireless communications. The ABSTS5A2-3H4M02CM specifically targets the 2140 MHz band, offering a balance between size, performance, and thermal stability for modern mobile electronics.

Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. Consult Abracon technical support for direct equivalents or cross-reference options based on specific electrical and mechanical requirements.
