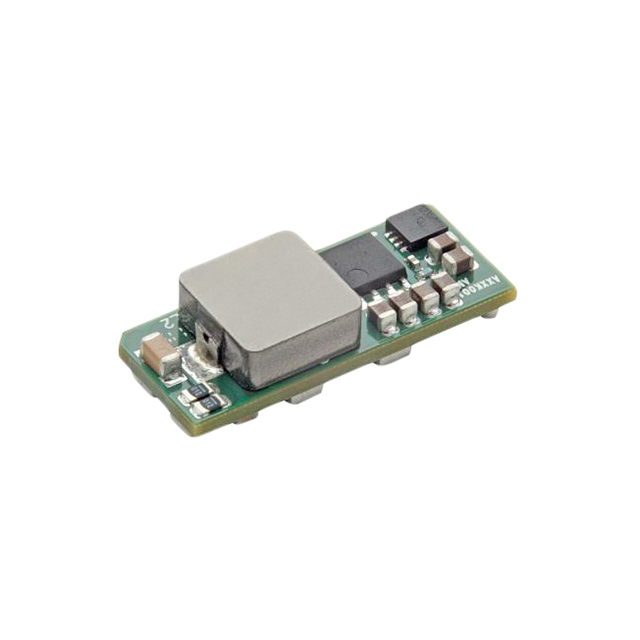

ABXS002A3X41-SRZ

ABXS002A3X41-SRZ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists OmniOn Power™. Its product description is DC DC CONVERTER 16-34V 65W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for ABXS002A3X41-SRZ

• Description：DC DC CONVERTER 16-34V 65W
• Series：BoostLynx™ (65W)
• Mfr：OmniOn Power™
• Package：Tape & Reel (TR),Cut Tape (CT)
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：8V
• Voltage - Input (Max)：16V
• Voltage - Output 1：16 ~ 34V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：2.32A
• Power (Watts)：65 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, OTP, UVLO
• Operating Temperature：-40°C ~ 85°C (With Derating)
• Efficiency：94%
• Mounting Type：Surface Mount
• Package / Case：8-SMD Module
• Size / Dimension：1.10" L x 0.45" W x 0.30" H (27.9mm x 11.4mm x 7.5mm)
• Supplier Device Package：8-SMD
• Control Features：Enable, Active Low
• Approval Agency：-
• Standard Number：-

DC DC Converters datasheet and documents for ABXS002A3X41-SRZ
