AC10248-01

Antennas RF Overview

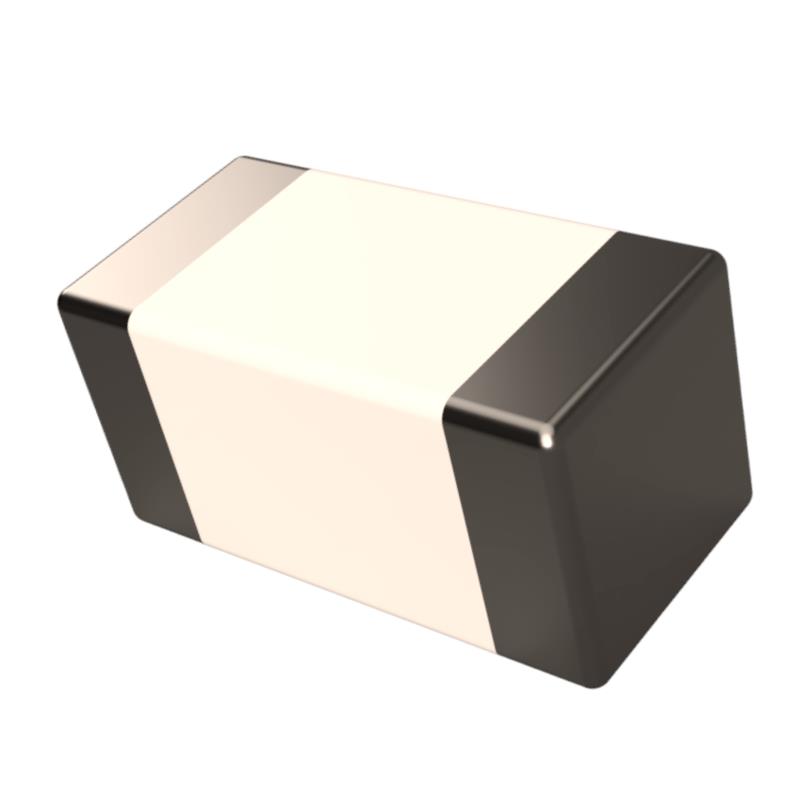

The AC10248-01 is a compact SMD ceramic chip loop antenna designed for embedded applications. It operates within the 2400 to 2500 MHz frequency range, providing a peak gain of 3 dB. The component supports surface mount soldering and functions reliably across an operating temperature range of -40 to 85 degrees Celsius.

Antennas RF Feature Summary

• Compact ceramic chip loop design optimized for space-constrained embedded devices
• Surface mount construction suitable for automated assembly processes
• Operational stability maintained across extended industrial temperature ranges

Antennas RF Applications

• Bluetooth wireless communication modules
• ZigBee sensor networks
• Wi-Fi enabled IoT devices
• Wearable technology components

Antennas RF Procurement Notes

Verify the specific ordering suffix against manufacturer documentation to ensure correct configuration. Confirm that the component meets all required environmental specifications for the intended deployment environment before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when integrating antennas into compact wearable or embedded systems requiring reliable 2.4 GHz performance. Ensure the design accommodates surface mount requirements and validates thermal tolerance within the specified operational range.

Antennas RF Part Context

This model belongs to the Antenna Company's line of RF antennas specifically engineered for ISM band operations. It serves as a specialized solution for manufacturers developing small-form-factor wireless devices requiring efficient signal transmission in crowded frequency spectrums.

Antennas RF Replacement Considerations

Consult official manufacturer substitution lists for verified alternatives. No public substitute part numbers are confirmed for direct replacement without engineering validation.
