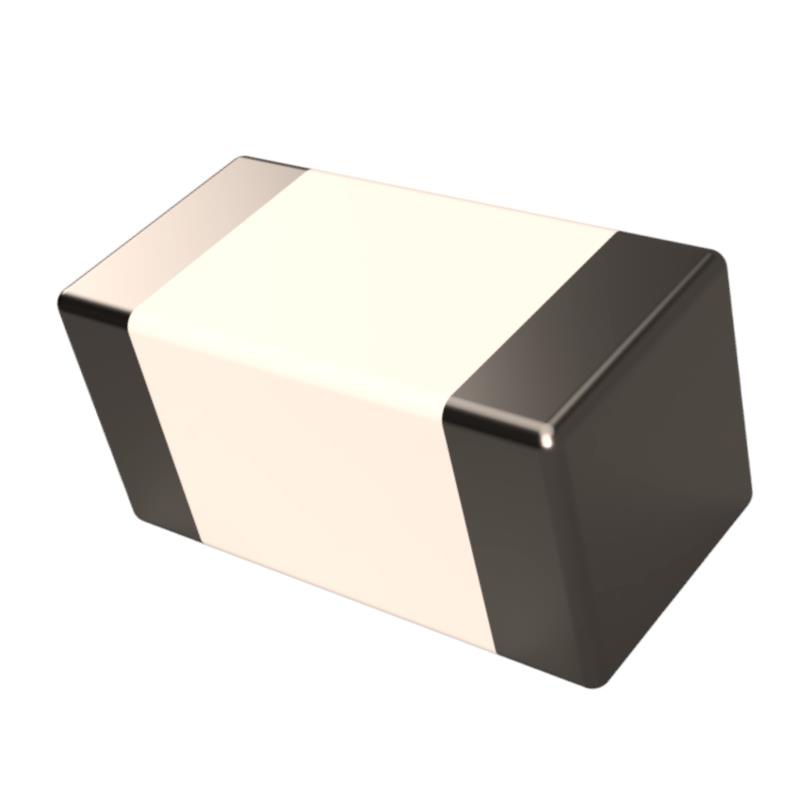

AC10300-01

$0.71

Description：ANT WIFI6E WLAN 2.4/5/6GHZ CHP
Series：-
Mfr：The Antenna Company
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:7d39098b4265 Category: RF Antennas Brand: The Antenna Company

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AC10300-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT WIFI6E WLAN 2.4/5/6GHZ CHP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AC10300-01

Description：ANT WIFI6E WLAN 2.4/5/6GHZ CHP
Series：-
Mfr：The Antenna Company
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.4GHz, 5GHz, 6GHz
Frequency Range：2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz
Antenna Type：Chip
Number of Bands：3
VSWR：3, 5, 4.5
Return Loss：-6dB, -3.5dB, -3.9dB
Gain：0.5dBi, 2.26dBi, 2.52dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.031" (0.80mm)
Applications：4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Power - Max：2 W

Antennas RF datasheet and documents for AC10300-01

AC10300-01

Antennas RF Overview

The AC10300-01 is a tri-band SMD ceramic chip antenna designed for WLAN and Wi-Fi 7 applications. It operates across three frequency ranges: 2.4GHz ~ 2.5GHz, 4.9GHz ~ 5.9GHz, and extends up to 7.125GHz. The component provides peak gains of 0.5dBi, 2.26dBi, and 2.52dBi respectively. It supports frequencies including 2400-2500MHz, 4900-7125MHz, and 5900-7125MHz. The antenna utilizes surface mount soldering technology.

Antennas RF Feature Summary

Supports tri-band operation covering 2.4GHz, 5GHz, and 6GHz bands for modern WLAN standards
Compact SMD ceramic construction suitable for space-constrained PCB layouts
Optimized for high-efficiency signal transmission in Wi-Fi 7 environments

Antennas RF Applications

WLAN connectivity modules
Wi-Fi 7 enabled devices
IoT gateways requiring multi-band support

Antennas RF Procurement Notes

Verify the specific datasheet version from The Antenna Company to confirm mechanical dimensions and soldering profile requirements. Ensure compatibility with the target PCB layout regarding ground plane clearance and mounting orientation. Cross-reference part numbers with authorized distributors to avoid counterfeit components.

Antennas RF Selection Notes

Select this component when tri-band coverage including the 6GHz band is required for Wi-Fi 7 compliance. Consider the low profile SMD package for integration into thin consumer electronics. Evaluate gain specifications against link budget requirements for each supported frequency band.

Antennas RF Part Context

This RF antenna belongs to the ceramic chip antenna category manufactured by The Antenna Company. It addresses the growing demand for multi-band wireless solutions in next-generation networking hardware. The design focuses on miniaturization while maintaining performance across extended frequency spectrums.
