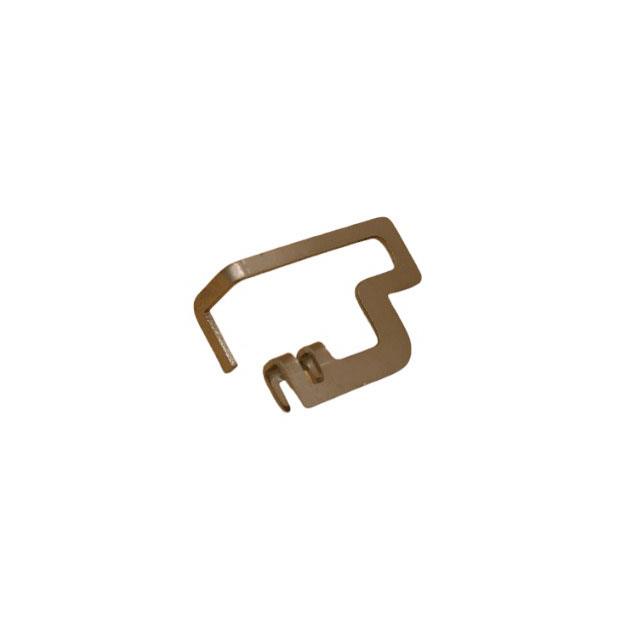

AC30026-01

$1.28

Description：ANT GNSS L1 E1 TH STAMPED MTL
Series：-
Mfr：The Antenna Company
Package：Tray

SKU:51ac292e79bb Category: RF Antennas Brand: The Antenna Company

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AC30026-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT GNSS L1 E1 TH STAMPED MTL. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AC30026-01

Description：ANT GNSS L1 E1 TH STAMPED MTL
Series：-
Mfr：The Antenna Company
Package：Tray
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.575GHz, 1.601GHz
Frequency Range：1.561GHz ~ 1.61GHz
Antenna Type：Stamped Metal
Number of Bands：2
VSWR：2, 2
Return Loss：-9.5dB, -9.5dB
Gain：5dBi, 5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Through Hole
Height (Max)：0.280" (7.00mm)
Applications：Galileo, GLONASS, GNSS, GPS
Power - Max：2 W

Antennas RF datasheet and documents for AC30026-01

AC30026-01

Antennas RF Overview

The AC30026-01 is a quasi-omnidirectional RF antenna element manufactured by The Antenna Company. It operates within the UHF frequency group, specifically targeting the GPS L1 band at 1.575 GHz and the GLONASS G1 band at 1.601 GHz. The component supports a maximum power handling capacity of 2 W. Designed for navigation applications, it utilizes stamped metal construction with solder through-hole mounting to ensure reliable integration into GNSS receiver systems.

Antennas RF Feature Summary

Quasi-omnidirectional radiation pattern for consistent signal reception
Dual-band operation supporting GPS L1 and GLONASS G1 frequencies
Stamped metal construction ensuring structural durability

Antennas RF Applications

GPS L1 navigation receivers
GLONASS G1 positioning systems
GNSS multi-constellation tracking modules

Antennas RF Procurement Notes

Verify that the specific order matches the AC30026-01 designation from The Antenna Company. Confirm the operating frequency aligns with 1.575 GHz and 1.601 GHz requirements. Ensure the 2 W power rating meets system specifications. Check for RoHS compliance status if required by project standards.

Antennas RF Selection Notes

Select this component when a compact, stamped metal antenna solution is needed for L1 and G1 bands. The quasi-omnidirectional characteristic suits applications requiring broad coverage without precise orientation. Verify compatibility with existing PCB layouts for through-hole assembly.

Antennas RF Part Context

This antenna belongs to the product line of The Antenna Company, which specializes in compact, high-efficiency antennas for wearables and connected consumer products. The AC30026-01 represents a solution for seamless performance in navigation contexts, distinct from array-based anti-jam systems offered by other manufacturers.
