AC30036-01

Antennas RF Overview

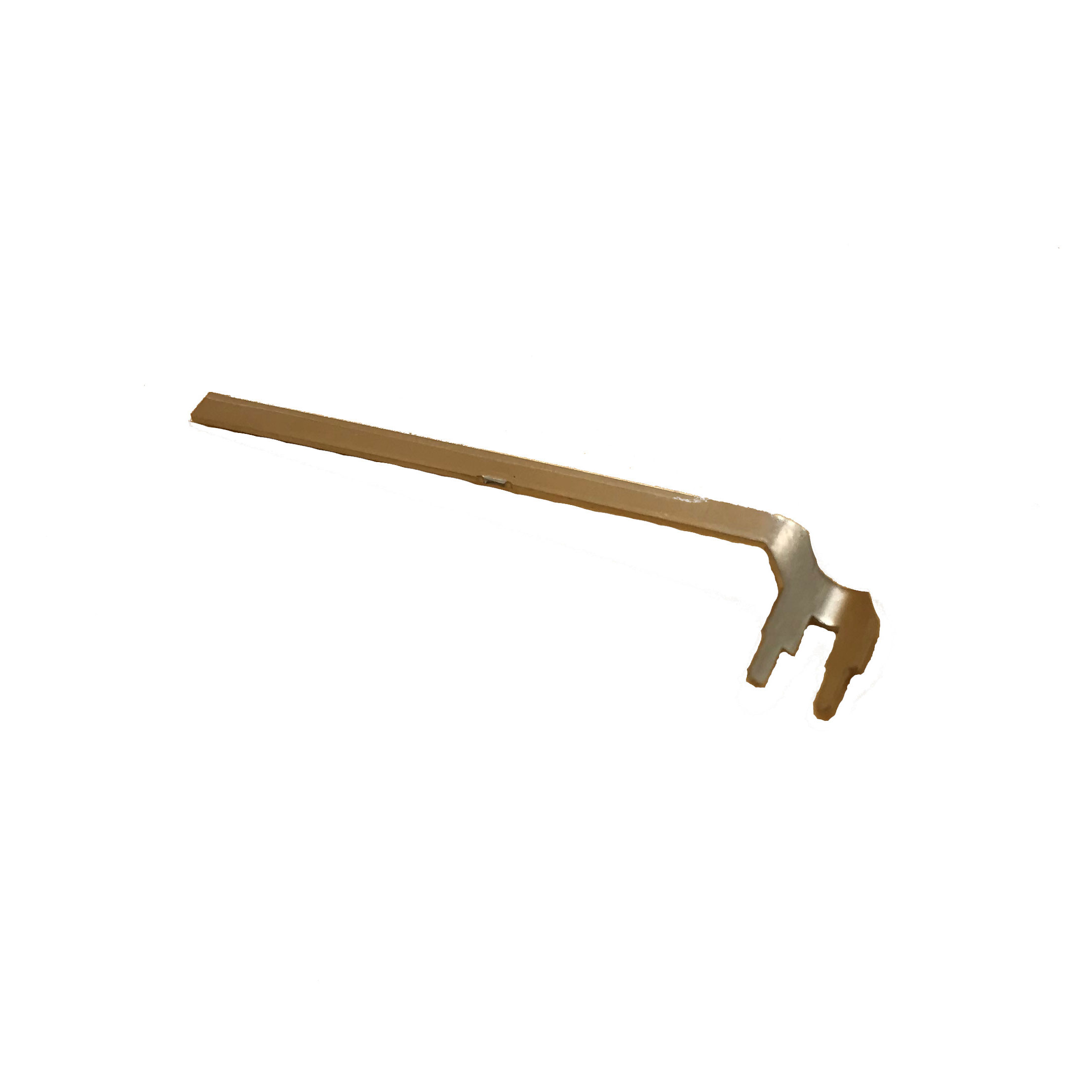

The AC30036-01 is a stamped metal GNSS antenna designed for edge-mount installation. It operates within the GPS L1 (1575 MHz) and GLONASS G1 (1601 MHz) frequency bands, covering a range of 1561 MHz to 1610 MHz. The component provides quasi-omni-directional radiation coverage with a gain of 2.45 dBi. It utilizes a solder through-hole mounting method, making it suitable for surface mount applications in embedded systems.

Antennas RF Feature Summary

• Quasi-omni-directional radiation pattern for broad signal reception
• Stamped metal construction for durability and RF performance
• Edge-mount design optimized for space-constrained PCB layouts

Antennas RF Applications

• GPS L1 navigation receivers
• GLONASS G1 positioning modules
• Embedded GNSS tracking devices
• Surface mount navigation assemblies

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency bands and mounting style. Confirm compatibility with the target PCB layout for edge-mount installation. Ensure the solder through-hole termination aligns with the assembly process. Check for any specific handling requirements related to the stamped metal construction during procurement and storage.

Antennas RF Selection Notes

Select this component when a low-profile, edge-mounted solution is required for multi-constellation GNSS applications. It is appropriate for designs needing quasi-omni-directional coverage without the bulk of larger antennas. Consider the stamped metal build for robustness in embedded environments where space is limited.

Antennas RF Part Context

This model belongs to the GNSS/Navigation antenna category from The Antenna Company. It is categorized as an internal or embedded antenna element. The product line includes various configurations for GPS, Galileo, and GLONASS support, with this specific unit focusing on L1/G1 band operations using a stamped metal form factor.

Antennas RF Replacement Considerations

AC30026-01 is a documented alternative offering similar quasi-omni-directional characteristics for GPS L1 and GLONASS G1 bands. Verify mechanical dimensions and mounting interface compatibility before substitution.
