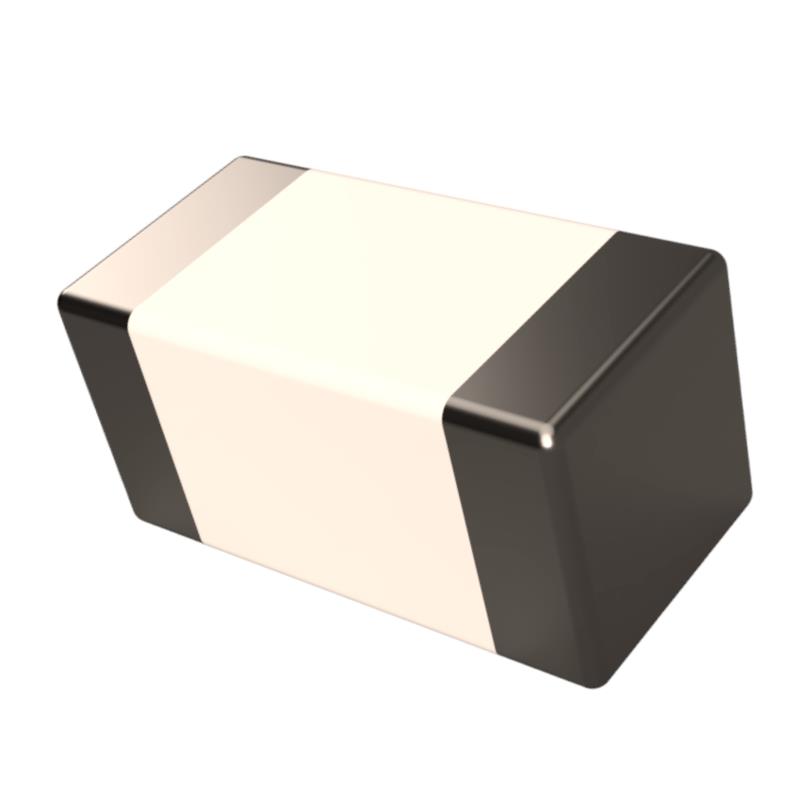

AC30157-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT GNSS L1 E1 SMD CER CHIP. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AC30157-01
- Description：ANT GNSS L1 E1 SMD CER CHIP
- Series：-
- Mfr：The Antenna Company
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Navigation
- Frequency Group：UHF (1GHz ~ 2GHz)
- Frequency (Center/Band)：1.561GHz, 1.575GHz, 1.602GHz
- Frequency Range：1.558GHz ~ 1.61GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：1.7, 1.7, 1.7
- Return Loss：-11.7dB, -11.7dB, -11.7dB
- Gain：2.8dBi, 3.1dBi, 2.5dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.031" (0.80mm)
- Applications：BeiDou, Galileo, GLONASS, GNSS, GPS
- Power - Max：2 W
Antennas RF datasheet and documents for AC30157-01
Antennas RF Overview
The AC30157-01 is a low-profile surface mount ceramic chip antenna designed for Global Navigation Satellite Systems. It operates within the frequency range of 1.558GHz to 1.61GHz, covering GPS L1 (1.575GHz), GLONASS G1 (1.601GHz), BeiDou, and Galileo bands. The component features a maximum height of 0.80mm and supports a maximum power of 2W. Key electrical parameters include a Voltage Standing Wave Ratio (VSWR) of 1.7, return loss of -11.7dB, and gain values ranging from 2.5dBi to 3.1dBi across its three supported frequency bands.
Antennas RF Feature Summary
- Ultra-compact surface mount ceramic construction suitable for space-constrained designs
- Multi-constellation support including GPS, GLONASS, BeiDou, and Galileo
- Low profile design with a maximum height of 0.80mm
Antennas RF Applications
- GPS navigation modules
- GLONASS positioning systems
- BeiDou receiver integration
- Galileo satellite navigation devices
Antennas RF Procurement Notes
Verify that the specific ordering suffix matches the required package type, such as tape and reel or cut tape, as indicated by distributor part numbers like 5350-AC30157-01TR-ND. Confirm RoHS3 compliance and MSL level 1 status for manufacturing compatibility. Ensure the selected variant aligns with the intended GNSS constellation requirements before finalizing procurement orders.
Antennas RF Selection Notes
Select this component when a minimal footprint and low profile are critical for the application. The antenna supports multiple GNSS constellations, making it suitable for global positioning needs. Verify that the operating environment does not exceed the 2W maximum power rating. Consider the SMD soldering process for assembly integration into the target PCB layout.
Antennas RF Part Context
This component belongs to the AC30157 series of GNSS antennas manufactured by The Antenna Company. It is distinct from other series such as the AC10300, which targets WiFi and cellular frequencies. The AC30157-01 specifically addresses navigation band requirements using ceramic chip technology.
Antennas RF Replacement Considerations
The AC93157-080 is an evaluation board associated with this antenna, not a direct functional replacement. No public confirmed substitute part numbers are available in the provided documentation.
