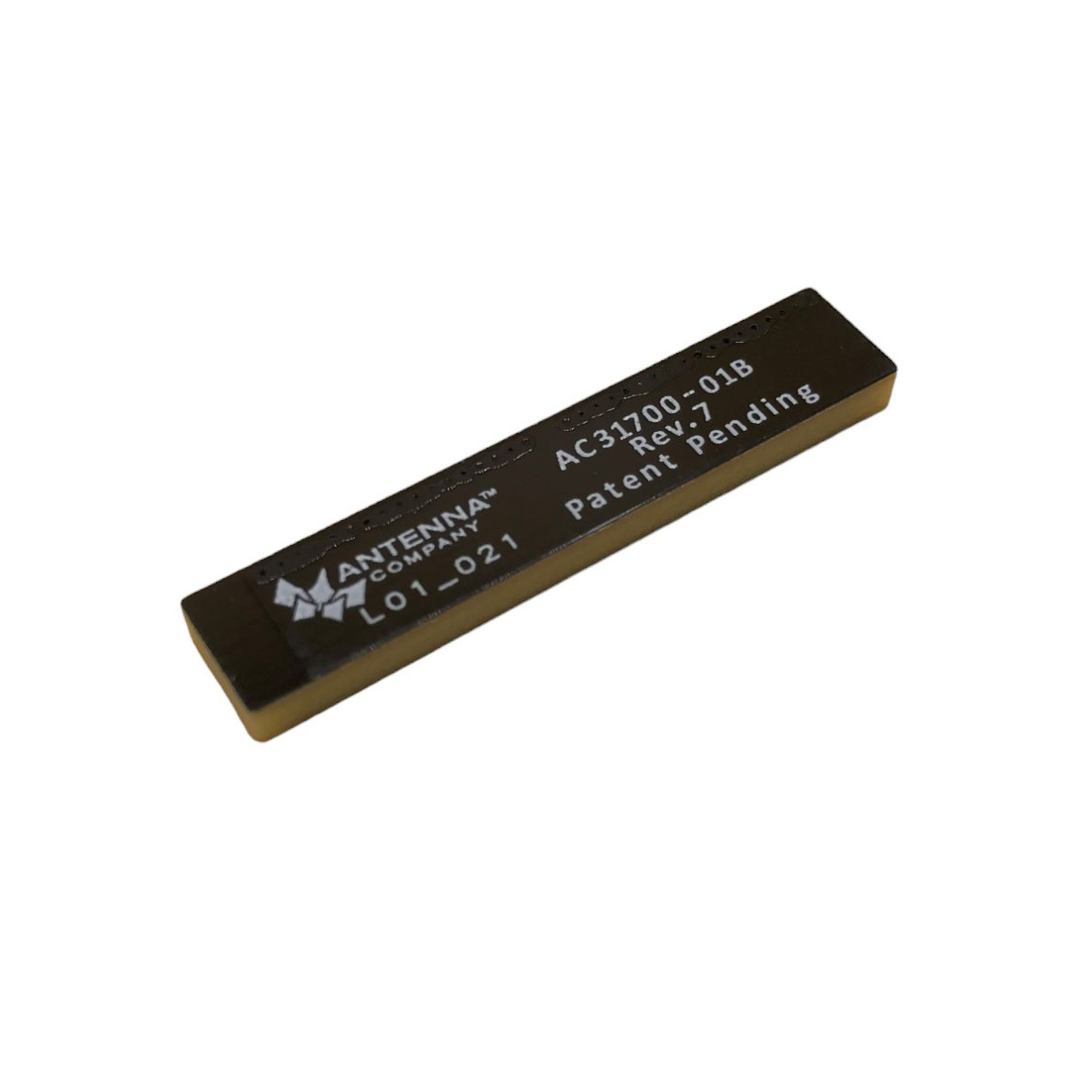

AC31700-01B

$0.68

Description：ANT BOOSTER 5G 4G LTE SMD CHIP
Series：-
Mfr：The Antenna Company
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:76002836606d Category: RF Antennas Brand: The Antenna Company

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AC31700-01B is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT BOOSTER 5G 4G LTE SMD CHIP. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AC31700-01B

Description：ANT BOOSTER 5G 4G LTE SMD CHIP
Series：-
Mfr：The Antenna Company
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz, 5GHz
Frequency Range：698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz
Antenna Type：Chip
Number of Bands：4
VSWR：4.5, 5, 3.5, 3.4
Return Loss：-3.9dB, -3.5dB, -5.1dB, -5.3dB
Gain：1dBi, 0.5dBi, 3dBi, 5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.118" (3.00mm)
Applications：4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Power - Max：2 W

Antennas RF datasheet and documents for AC31700-01B

AC31700-01B

Antennas RF Overview

The AC31700-01B is a surface-mount booster element designed for The Antenna Company AC31700-01A antenna. It operates within a wide frequency range of 698 MHz to 6000 MHz, supporting 5G, 4G LTE, Cat-M1, CDMA, and GSM standards. Key electrical parameters include return loss values of -3.9 dB, -3.5 dB, -5.1 dB, and -5.3 dB, with gain specifications of 1 dBi and 0.5 dBi. This component enables optimal performance on IoT devices featuring reduced ground planes.

Antennas RF Feature Summary

Seamless integration with the AC31700-01A 5G/4G antenna system
Optimized performance on reduced ground plane designs
High-efficiency wideband operation across cellular and IoT bands

Antennas RF Applications

IoT devices with limited ground plane space
5G and 4G LTE connectivity modules
Cat-M1 and NB-IoT applications
CDMA and GSM cellular devices

Antennas RF Procurement Notes

Verify that the AC31700-01B is intended as a booster element specifically for the AC31700-01A antenna assembly. Confirm surface-mount package compatibility and soldering requirements with your PCB design. Ensure the target application supports the specified frequency range and standard protocols. Cross-reference official datasheets for precise mechanical dimensions and thermal characteristics before finalizing procurement.

Antennas RF Selection Notes

Select this component when deploying the AC31700-01A antenna in environments with constrained ground plane areas. It is suitable for multi-standard cellular and IoT connectivity requiring wideband coverage from 698 MHz to 6000 MHz. Consider its SMD form factor for automated assembly processes. Validate that the required gain and return loss metrics align with system link budget calculations.

Antennas RF Part Context

The AC31700-01B functions as an auxiliary RF component rather than a standalone antenna. It complements the primary AC31700-01A unit to enhance signal efficiency in compact form factors. This configuration addresses common challenges in modern IoT hardware where physical space limits traditional antenna placement and performance.
