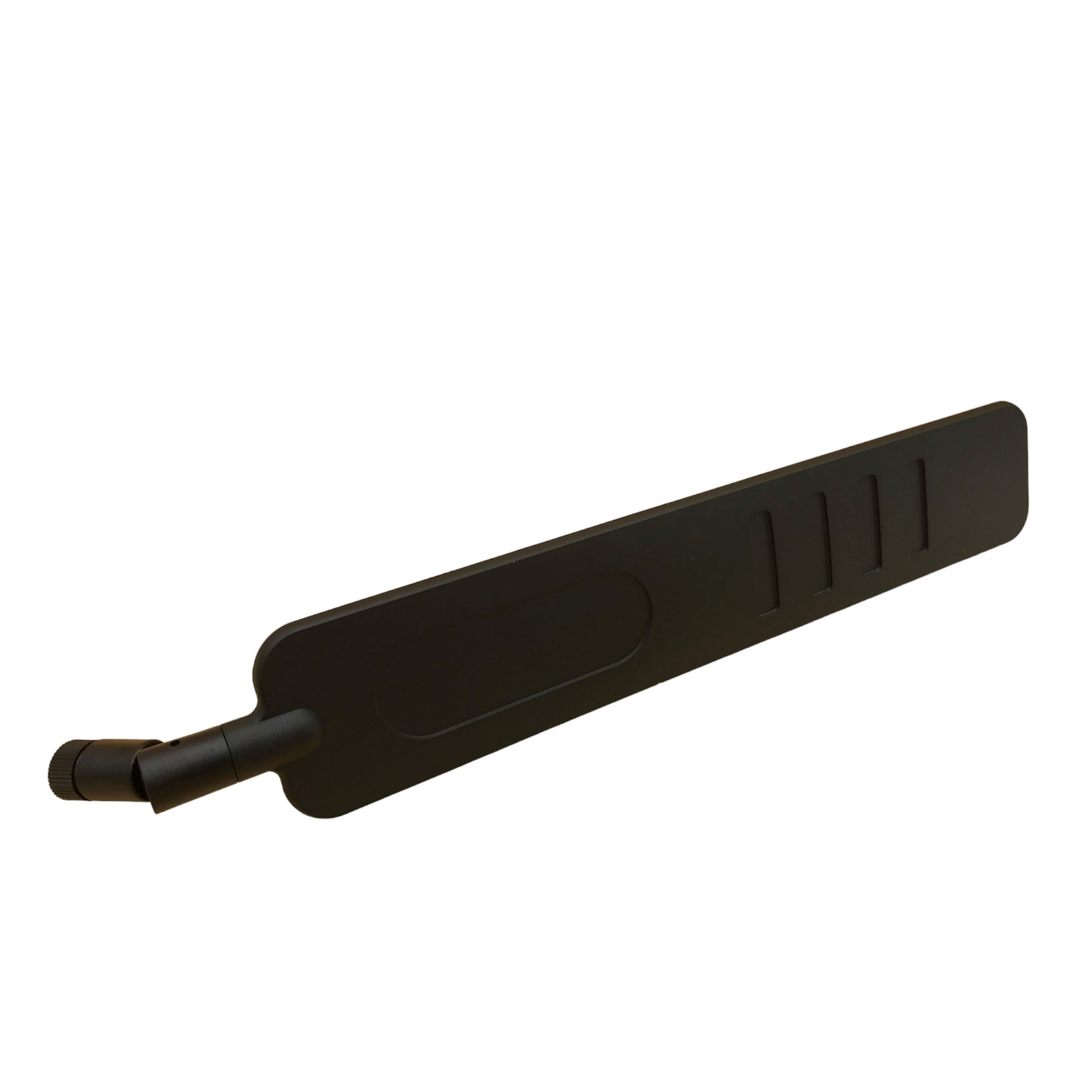

AC94502-01 is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT 5G 4G LTE 450MHZ TLT BLADE. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AC94502-01
- Description：ANT 5G 4G LTE 450MHZ TLT BLADE
- Series：-
- Mfr：The Antenna Company
- Package：Bulk
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：450MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz, 3.5GHz
- Frequency Range：450MHz ~ 470MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz
- Antenna Type：Blade, Tilt/Swivel
- Number of Bands：6
- VSWR：1.7, 2.1, 2, 1.7, 1.9, 2.2
- Return Loss：-11.7dB, -9dB, -9.5dB, -11.7dB, -10.2dB, -8.5dB
- Gain：2dBi, 2.9dBi, 2.9dBi, 4.5dBi, 6.1dBi, 6.1dBi
- Features：-
- Termination：SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：11.732" (298.00mm)
- Applications：4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
- Power - Max：10 W
Antennas RF datasheet and documents for AC94502-01
Antennas RF Overview
The AC94502-01 is a multiband indoor omnidirectional cellular antenna designed for smart utility and IoT deployments. It supports frequency ranges of 450–470 MHz, 700–960 MHz, and 1700–4000 MHz. The unit features a peak gain of 2 to 6.1 dB and handles up to 10 W power. It utilizes an SMA male connector with tilt/swivel mounting capabilities. The compact form factor measures 26 x 70 x 3 mm, facilitating installation in multipath environments while minimizing setup time.
Antennas RF Feature Summary
- Omnidirectional radiation pattern optimized for indoor cellular coverage
- Multiband support including 4G, 5G, Cat-M1, CDMA, GSM, LTE, LTE-M, NB-IoT, and UMTS
- Tilt/swivel SMA male connector mount for flexible positioning
Antennas RF Applications
- Smart utility solutions implementation
- Indoor cellular signal distribution
- IoT device connectivity in multipath environments
Antennas RF Procurement Notes
Verify the specific frequency band requirements against the official datasheet before procurement. Confirm that the SMA male connector interface matches existing cabling infrastructure. Ensure the 10 W power rating aligns with system specifications. Check for any ordering suffixes that may indicate variant configurations. Validate physical dimensions against available mounting space constraints.
Antennas RF Selection Notes
Select this model for applications requiring broad frequency coverage within a low-profile indoor form factor. Consider its suitability for environments where signal reflection and multipath interference are prevalent. Evaluate the tilt/swivel mount feature for optimizing line-of-sight conditions. Compare performance metrics against other indoor antennas if specialized band isolation is required.
Antennas RF Part Context
This component belongs to The Antenna Company’s portfolio of RF antennas and wireless communication devices. It is categorized as a standard indoor cellular antenna. The product line focuses on providing reliable connectivity for industrial and utility sectors through robust, compact design solutions.
Antennas RF Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult official manufacturer resources for cross-reference data or updated series replacements.
