AC94541-060A

$46.85

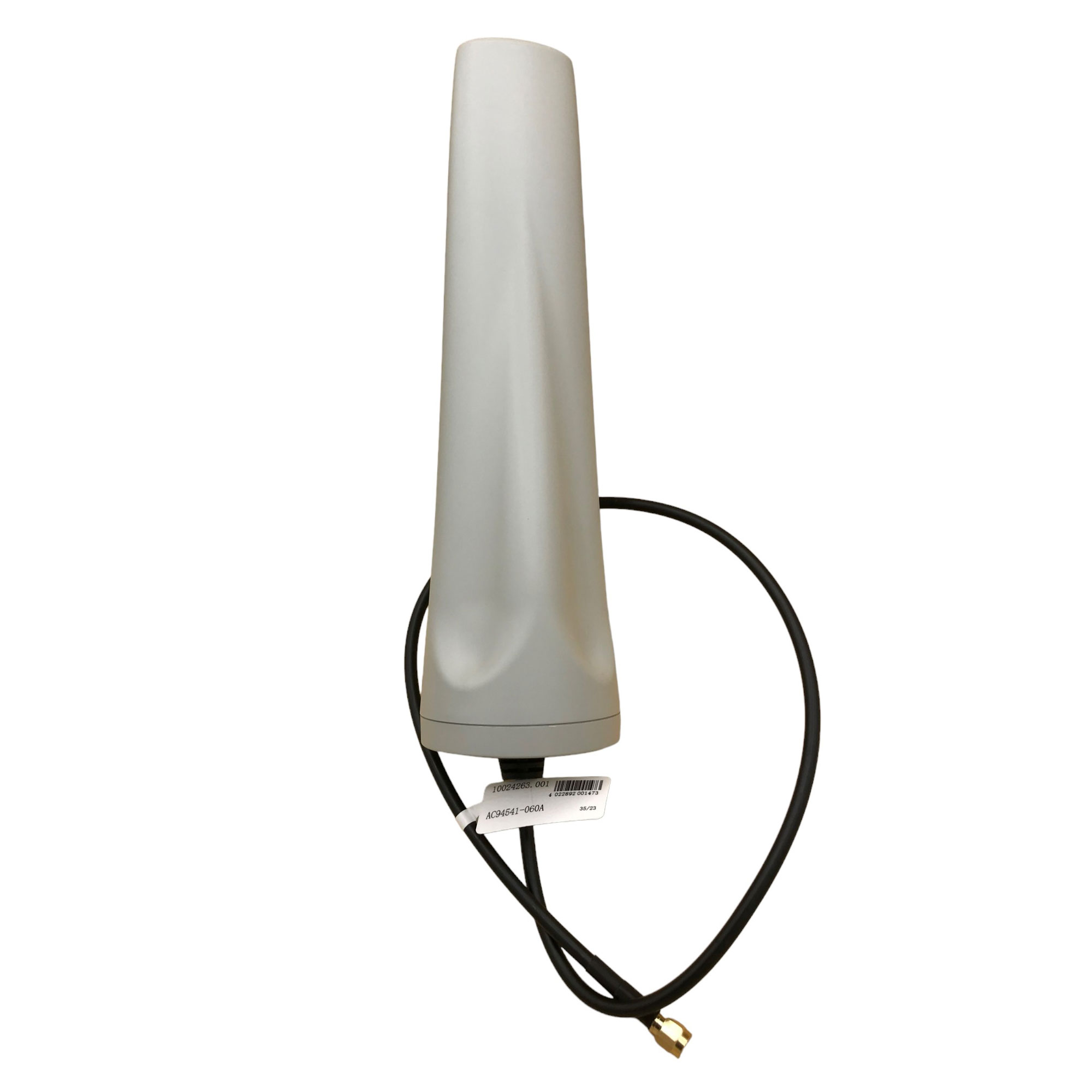

Description：ANT 5G 4G LTE 450MHZ DOME IP67
Series：-
Mfr：The Antenna Company
Package：Box

SKU:44c54599c03f Category: RF Antennas Brand: The Antenna Company

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

AC94541-060A is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT 5G 4G LTE 450MHZ DOME IP67. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for AC94541-060A

Description：ANT 5G 4G LTE 450MHZ DOME IP67
Series：-
Mfr：The Antenna Company
Package：Box
RF Family/Standard：Cellular
Frequency Group：Wide Band
Frequency (Center/Band)：410MHz, 450MHz, 600MHz, 700MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.4GHz
Frequency Range：410MHz ~ 430MHz, 450MHz ~ 470MHz, 617MHz ~ 698MHz, 698MHz ~ 803MHz, 791MHz ~ 894MHz, 832MHz ~ 1.518GHz, 1.525GHz ~ 1.661GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.69GHz
Antenna Type：Dome
Number of Bands：9
VSWR：3.4, 1.4, 3.5, 3.7, 3.7, 5.3, 3.2, 2.8, 2.7
Return Loss：-5.3dB, -15.6dB, -5.1dB, -4.8dB, -4.8dB, -3.3dB, -5.6dB, -6.5dB
Gain：3dBi, 3dBi, 4.5dBi, 4.5dBi, 4.5dBi, 5.1dBi, 5.1dBi, 5.1dBi, 5.1dBi
Features：-
Termination：SMA Male
Ingress Protection：IP67
Grade：-
Qualification：-
Mounting Type：Panel Mount
Height (Max)：2.760" (70.10mm)
Applications：4G, 5G, Cat-M1, CDMA, Cellular, GSM, LTE, LTE-M, NB-IoT, UMTS
Power - Max：45 W

Antennas RF datasheet and documents for AC94541-060A

AC94541-060A

Antennas RF Overview

The AC94541-060A is a panel-mount cellular dome antenna from The Antenna Company, designed for rugged outdoor and indoor environments. It features an omni-directional radiation pattern with peak gain ranging from 2.9 to 4.8 dB across its operational bands. The unit supports wideband frequency coverage including 410–470 MHz, 698–960 MHz, and 1700–2700 MHz. It handles up to 45 W of power and utilizes an SMA plug connector. The antenna meets IP67 ingress protection standards and IK10 impact resistance ratings.

Antennas RF Feature Summary

Omni-directional radiation pattern optimized for multi-band cellular performance
Ruggedized construction with IP67 ingress protection and IK10 impact resistance
Wide frequency band coverage supporting LTE, 5G, and IoT protocols
Panel-mount design suitable for metal and non-metal surfaces

Antennas RF Applications

Smart utility infrastructure monitoring
Long-distance cellular network connectivity
Cat-M1/LTE-M and NB-IoT deployments
LTE 410 and LTE 450 band applications

Antennas RF Procurement Notes

Verify the specific suffix designation when ordering, as cable length variations exist within the AC94541 series. Confirm that the SMA plug termination matches the receiving equipment interface requirements. Ensure the selected variant aligns with the required frequency bands for the target deployment environment. Cross-reference the part number against official distributor catalogs to confirm current availability status.

Antennas RF Selection Notes

Select this model for applications requiring robust environmental sealing and broad frequency support. The high power handling capacity suits active systems or long cable runs. Consider the physical dimensions and mounting requirements for panel installation. Verify compatibility with existing SMA-based RF infrastructure before integration into the system design.

Antennas RF Part Context

This component belongs to the AC94541 series of external panel-mount cellular dome antennas. The series offers multiple cable length options while maintaining consistent electrical performance and environmental ratings. It is engineered by The Antenna Company for reliable operation in challenging industrial and utility settings.

Antennas RF Replacement Considerations

Direct substitutes are not explicitly documented in public sources. Evaluate other models within the AC94541 series if different cable lengths are required. Ensure any alternative maintains identical SMA connector type and IP67 rating for environmental compatibility.
