AC97002-200 is listed in the Antennas RF range at ChipApex. The manufacturer field lists The Antenna Company. Its product description is ANT MODULE 5G 4G LTE WIDEBAND. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for AC97002-200
- Description：ANT MODULE 5G 4G LTE WIDEBAND
- Series：bar
- Mfr：The Antenna Company
- Package：Box
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：750.5MHz, 875.5MHz, 1.174GHz, 1.551GHz, 1.947GHz, 2.35GHz, 2.589GHz
- Frequency Range：698MHz ~ 803MHz, 791MHz ~ 960MHz, 832MHz ~ 1.517GHz, 1.427GHz ~ 1.675GHz, 1.695GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.483GHz ~ 2.695GHz
- Antenna Type：Module
- Number of Bands：7
- VSWR：-
- Return Loss：-
- Gain：-
- Features：Cable - 2m
- Termination：Fakra D
- Ingress Protection：IP61
- Grade：-
- Qualification：-
- Mounting Type：Adhesive, Screw Mount
- Height (Max)：1.398" (35.50mm)
- Applications：2G, 3G, 4G, 5G, LTE
- Power - Max：45 W
Antennas RF datasheet and documents for AC97002-200
Antennas RF Overview

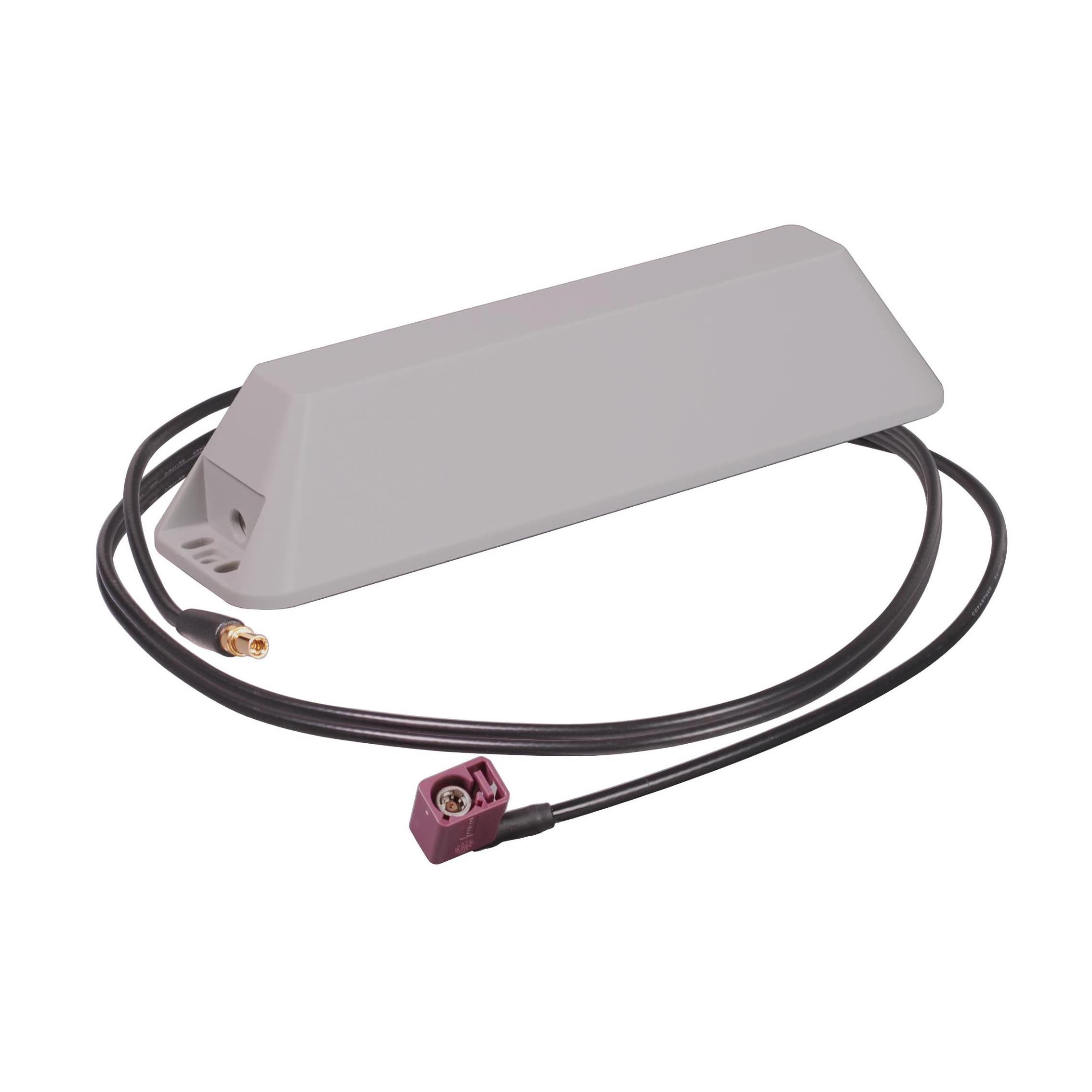

The AC97002-200 is a cellular external adhesive bar antenna designed for 5G, 4G, and LTE wideband applications. It features a compact 35 mm height profile suitable for outdoor or indoor mounting on metal and non-metal surfaces. The unit includes a 2-meter RG174LL coaxial cable terminated with an Fakra D connector. This configuration supports global cellular networks including Cat-M1/LTE-M and NB-IoT. The antenna provides IP61 protection rating and utilizes peel-and-stick adhesive for easy installation.
Antennas RF Feature Summary
- Low-profile 35 mm design for discreet mounting
- Multi-band coverage for common cellular frequencies
- Peel-and-stick adhesive backing for rapid installation
- Pre-terminated 2-meter cable with Fakra D connector
Antennas RF Applications
- Smart metering infrastructure
- Global 5G/4G/3G/2G cellular networks
- Cellular IoT (Cat-M1/LTE-M/NB-IoT)
- Asset tracking devices
Antennas RF Procurement Notes
Verify the specific suffix to confirm cable length and connector type. The AC97002-200 denotes a 2-meter cable variant. Confirm IP rating requirements as fixed cable versions may differ from detachable options. Ensure compatibility with Fakra D interfaces in the target system. Check RoHS3 compliance status for regulatory adherence.
Antennas RF Selection Notes
Select this model for applications requiring a low-profile external solution. The 2-meter cable length accommodates remote placement from the host device. Verify surface material compatibility for adhesive bonding. Consider environmental exposure when choosing between IP61 and IP65 rated variants. Ensure sufficient clearance for the 35 mm height constraint.
Antennas RF Part Context
This component belongs to the AC97002 series of cellular bar antennas. The series offers various cable lengths and connector configurations. The -200 suffix specifically identifies the 2-meter cable option. The product line targets smart utility and IoT deployments requiring reliable wideband connectivity.
Antennas RF Replacement Considerations
No public confirmed substitute part numbers are available. Direct replacements require matching frequency bands, connector types, and physical dimensions. Consult manufacturer documentation for cross-reference data.
