AC97002-200B

Antennas RF Overview

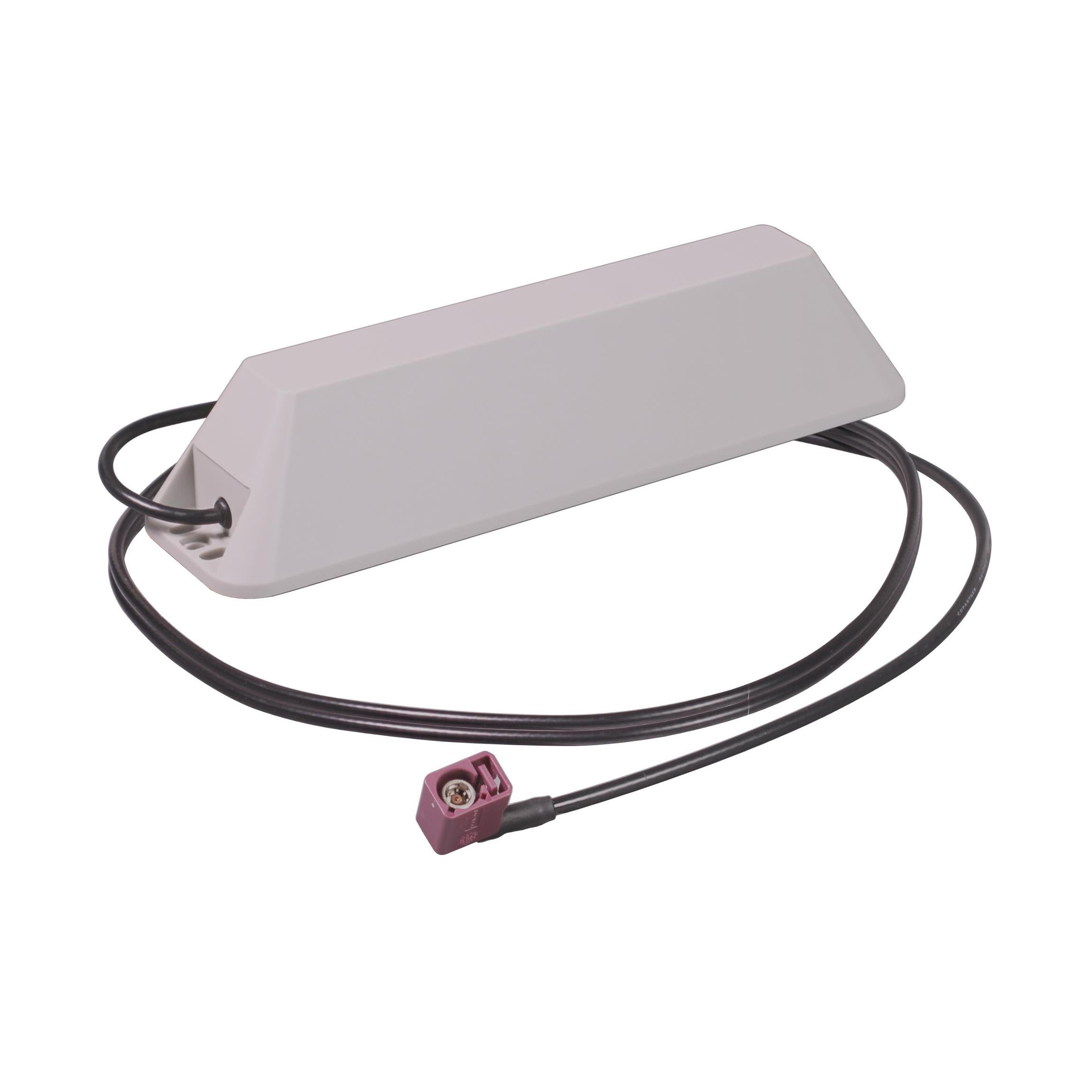

The AC97002-200B is a wideband cellular bar antenna designed for outdoor and indoor use, featuring a low-profile 35 mm height. It supports frequency ranges of 698–960 MHz and 1700–2690 MHz, covering 2G, 3G, 4G, LTE, and 5G bands. The unit includes a 2-meter RG174LL coaxial cable terminated with an Fakra D connector. It offers IP65 ingress protection and utilizes peel-and-stick adhesive or screw mount installation methods.

Antennas RF Feature Summary

• Low-profile omni-directional design suitable for metal and non-metal surfaces
• IP65 rated weatherproofing for reliable outdoor performance
• Simplified installation via peel-and-stick backing or screw mount options

Antennas RF Applications

• Smart metering infrastructure deployment
• Cellular IoT (Cat-M1/LTE-M) connectivity
• Narrowband IoT (NB-IoT) asset tracking
• Smart utility grid communication systems

Antennas RF Procurement Notes

Verify the specific suffix designation to confirm cable length and connector type, as variations exist within the AC97002 series. Ensure compatibility with Fakra D interfaces on the target device. Confirm IP65 rating requirements for the intended environmental exposure before finalizing procurement orders.

Antennas RF Selection Notes

Select this model for applications requiring broad cellular band coverage across multiple generations of mobile networks. The fixed 2-meter cable length suits installations where the radio module is positioned at a moderate distance from the mounting surface. Consider the IP65 rating for exposed environments compared to lower-rated indoor variants.

Antennas RF Part Context

This component belongs to the AC97002 family of cellular antennas manufactured by The Antenna Company. The series provides multi-band solutions for global cellular standards. The AC97002-200B variant specifically denotes the configuration with a 2-meter cable length and Fakra D termination, distinguishing it from other cable length options in the product line.

Antennas RF Replacement Considerations

Direct substitutes include other AC97002 variants such as AC97002-100B or AC97002-150B if different cable lengths are acceptable. Verify that any replacement maintains the Fakra D connector interface and IP65 rating to ensure functional equivalence.
