ACA-102-T

Antennas RF Overview

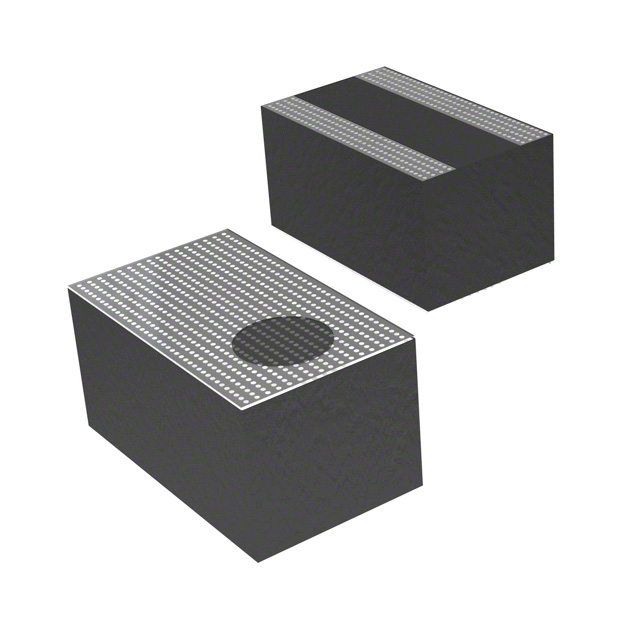

The ACA-102-T is a WiFi and Bluetooth chip antenna manufactured by Abracon LLC, designed for surface mount soldering applications. It operates within the frequency range of 2400 to 2485 MHz. The component is constructed from solid dielectric ceramic material and is suitable for RoHS compliant reflow processes. Key electrical characteristics include a peak gain of 0.60 dBi and an average gain of -3.48 dBi. The product status is currently listed as obsolete and no longer manufactured.

Antennas RF Feature Summary

• Constructed from solid dielectric ceramic material
• Designed for surface mount soldering applications
• Suitable for RoHS compliant reflow processes

Antennas RF Applications

• Bluetooth devices
• WLAN equipment

Antennas RF Procurement Notes

Verify current availability status carefully as this part is officially marked as obsolete and no longer manufactured by Abracon LLC. Sourcing may require checking distributor surplus stock or authorized secondary market channels rather than direct factory orders. Confirm exact physical dimensions and pin configurations against legacy documentation before integration into new designs to ensure compatibility with existing footprints.

Antennas RF Selection Notes

Consider alternative active components from the same manufacturer family due to the obsolete status of this specific model. Evaluate substitute parts based on matching frequency ranges and form factors. Ensure any replacement maintains compatibility with RoHS compliance requirements and surface mount assembly processes used in the target application environment.

Antennas RF Part Context

This component belongs to the RF Antennas category under Abracon LLC's portfolio. It is specifically categorized as a chip antenna intended for wireless communication modules. The design supports compact electronic implementations requiring integrated radiating elements without external whip or PCB trace antennas.

Antennas RF Replacement Considerations

Check for similar active substitutes listed by distributors such as DigiKey. Verify that any recommended replacement matches the 2400-2485 MHz operational band and surface mount package type.
