ACA-105-T

Antennas RF Overview

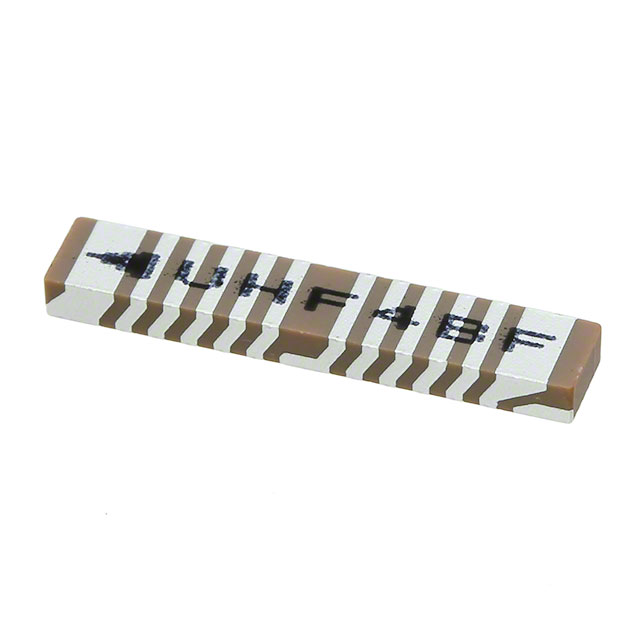

The ACA-105-T is a surface-mount multiband chip antenna manufactured by Abracon LLC. It operates across four frequency bands: 490 MHz, 783 MHz, 868 MHz, and 915 MHz. The component provides a consistent gain of 3.28 dBi across these operating bands. It is designed for WLAN systems and features a compact form factor suitable for space-constrained applications.

Antennas RF Feature Summary

• Multiband operation supporting 490 MHz, 783 MHz, 868 MHz, and 915 MHz frequencies
• Consistent gain performance of 3.28 dBi across all supported bands
• Optimized design specifically for WLAN system integration

Antennas RF Applications

• WLAN systems
• RF/IF and RFID applications
• Surface mount electronic assemblies

Antennas RF Procurement Notes

Verify the current manufacturing status before procurement as this product may be discontinued or subject to tariff regulations depending on the shipping destination. Confirm that the specific part number matches the required frequency bands and gain specifications for your application. Ensure compatibility with surface-mount assembly processes and check for any updated datasheets regarding lead times or alternative sourcing options from authorized distributors.

Antennas RF Selection Notes

Select the ACA-105-T when a compact multiband solution is required for WLAN applications. Its consistent gain across multiple bands simplifies design compared to single-band alternatives. Consider its surface-mount package type for automated assembly. Evaluate if the 3.28 dBi gain meets the link budget requirements for the intended wireless communication range and environment.

Antennas RF Part Context

This component belongs to the RF Antennas category within Abracon's portfolio. It is classified as a surface-mount multiband chip antenna. The ACA-105-T is distinct from other Abracon products like the ACML series ferrite beads or ASCO2 clock oscillators due to its specific function in radio frequency signal transmission and reception across multiple industrial and WLAN bands.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation. As the product status indicates it may no longer be manufactured, consult official Abracon channels for potential obsolescence management or recommended replacements.
