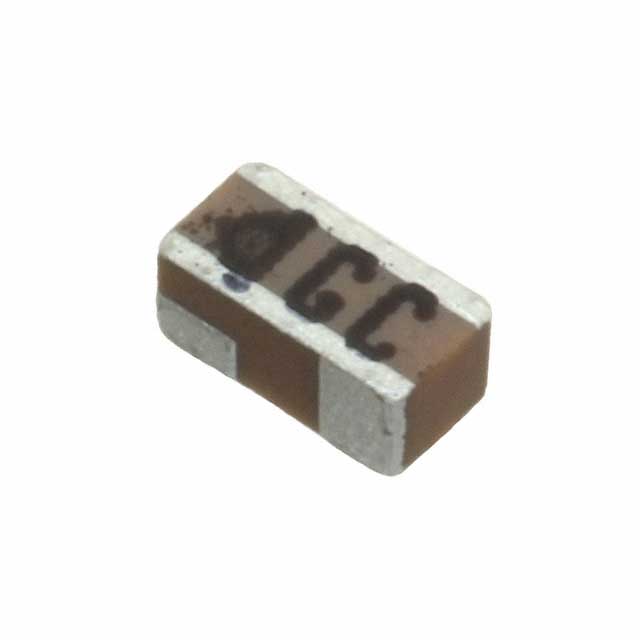

ACA-106-T

$0.18

Description：RF ANT 1.56GHZ/1.575GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:e96a8097dd3b Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACA-106-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 1.56GHZ/1.575GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACA-106-T

Description：RF ANT 1.56GHZ/1.575GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)
RF Family/Standard：Navigation
Frequency Group：UHF (1GHz ~ 2GHz)
Frequency (Center/Band)：1.56GHz, 1.575GHz, 1.585GHz
Frequency Range：1.56GHz ~ 1.61GHz
Antenna Type：Chip
Number of Bands：4
VSWR：3
Return Loss：-
Gain：3.28dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：Beidou, GLONASS, GNSS, GPS
Power - Max：-

Antennas RF datasheet and documents for ACA-106-T

ACA-106-T

Antennas RF Overview

The ACA-106-T is a multiband chip RF antenna manufactured by Abracon LLC, designed for navigation applications. It operates within the frequency range of 1.56 GHz to 1.61 GHz, supporting Beidou, GLONASS, GNSS, and GPS standards. The component features a gain of 3.28 dBi and utilizes a surface-mount solder termination. Its physical construction is optimized for integration into compact electronic devices requiring reliable multi-constellation satellite signal reception.

Antennas RF Feature Summary

Supports multiple global navigation satellite systems including Beidou, GLONASS, GNSS, and GPS
Provides consistent signal gain across the designated navigation frequency bands
Utilizes a compact chip form factor suitable for space-constrained mobile terminals

Antennas RF Applications

Beidou navigation modules
GLONASS positioning devices
GNSS receivers
GPS tracking equipment

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical dimensions prior to integration. Confirm that the target application environment does not exceed the operational limits defined in the official Abracon documentation. Ensure compatibility with the intended PCB layout and soldering process parameters as specified in the manufacturer's guidelines.

Antennas RF Selection Notes

Select this component when multiband support for Beidou, GLONASS, GNSS, and GPS is required in a single antenna solution. Consider the 3.28 dBi gain specification for link budget calculations. Evaluate the physical size constraints against the available board space, ensuring the surface-mount package aligns with the design footprint requirements.

Antennas RF Part Context

The ACA-106-T belongs to Abracon's portfolio of RF antennas tailored for navigation and positioning technologies. It addresses the industry demand for consolidated antenna solutions that handle multiple frequency bands simultaneously. This component serves as a critical interface between satellite signals and receiver electronics in modern mobile and embedded systems.
