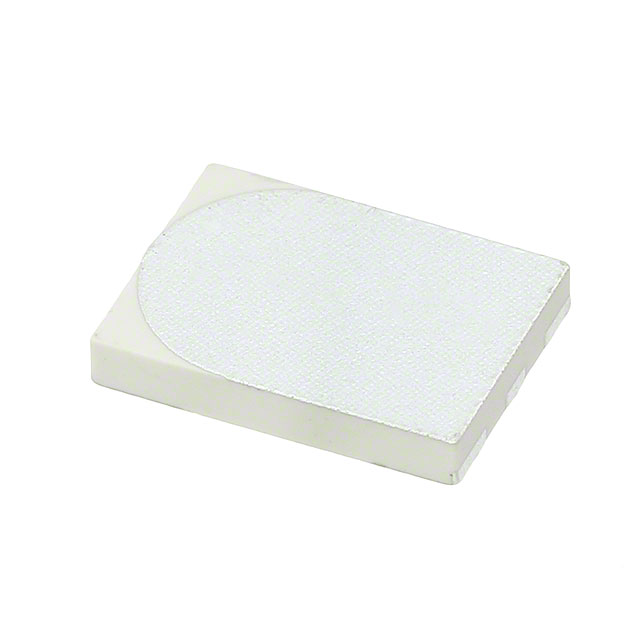

ACA-107-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 5.2GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACA-107-T
- Description：RF ANT 5.2GHZ CHIP SOLDER SMD
- Series：-
- Mfr：Abracon LLC
- Package：Tape & Reel (TR)
- RF Family/Standard：-
- Frequency Group：SHF (f > 4GHz)
- Frequency (Center/Band)：5.2GHz
- Frequency Range：3.2GHz ~ 7.2GHz
- Antenna Type：Chip
- Number of Bands：1
- VSWR：5
- Return Loss：-
- Gain：4.16dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.047" (1.20mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for ACA-107-T
Antennas RF Overview
The ACA-107-T is an ultra-wideband (UWB) chip antenna manufactured by Abracon LLC. It operates within a frequency range of 3.2 GHz to 7.2 GHz, covering the standard UWB spectrum. The component features a gain ranging from -1.10 dBi to 4.16 dBi and supports an operating temperature range of -40°C to +85°C. It utilizes a surface-mount package with dimensions of 0.047 inches (1.20 mm). This antenna is designed for integration into compact wireless devices requiring wide bandwidth coverage.
Antennas RF Feature Summary
- Ultra-wideband frequency coverage spanning 3.2 GHz to 7.2 GHz
- Compact surface-mount design suitable for space-constrained applications
- Operational stability across industrial temperature ranges
Antennas RF Applications
- UWB positioning and tracking systems
- Short-range high-speed data transfer modules
- Industrial IoT sensors requiring wideband connectivity
Antennas RF Procurement Notes
Verify current availability status as this part number is listed as obsolete or discontinued. Confirm if a Last Time Buy option exists through authorized distributors. Ensure compatibility with existing RF front-end designs before finalizing procurement plans due to end-of-life status.
Antennas RF Selection Notes
Select this component only if legacy support for the specific 3.2–7.2 GHz UWB band is required. Evaluate alternative active components from the manufacturer's current portfolio for long-term supply chain stability. Verify impedance matching requirements against the target circuit board layout.
Antennas RF Part Context
This antenna belongs to Abracon’s line of passive RF components designed for wireless communication interfaces. It serves as a critical element in enabling ultra-wideband signal transmission and reception for various electronic devices.
Antennas RF Replacement Considerations
Check the DW1000 Datasheet for recommended substitutes. Consult Abracon’s official obsolescence notices for direct replacement part numbers that maintain equivalent electrical specifications.
