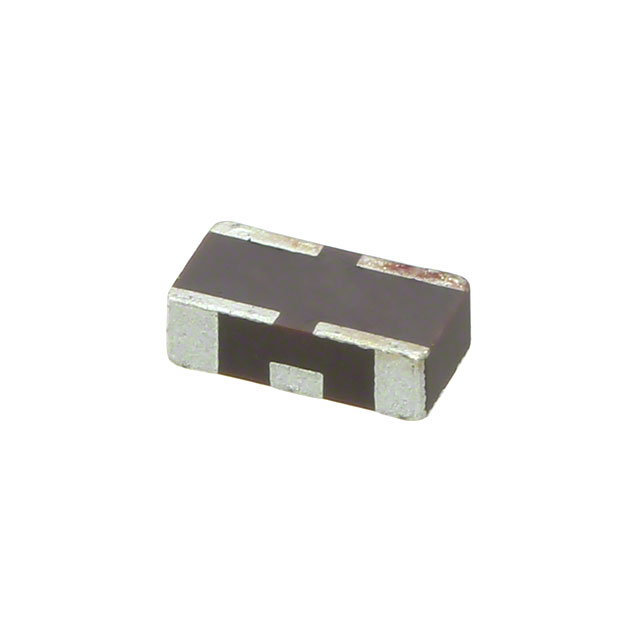

ACA-108-T

$0.21

Description：RF ANT 1.575GHZ/1.8GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)

SKU:ca76d8651d23 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACA-108-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 1.575GHZ/1.8GHZ CHIP SLD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACA-108-T

Description：RF ANT 1.575GHZ/1.8GHZ CHIP SLD
Series：-
Mfr：Abracon LLC
Package：Tape & Reel (TR)
RF Family/Standard：Bluetooth, Cellular, Navigation, WiFi
Frequency Group：Wide Band
Frequency (Center/Band)：1.575GHz, 1.8GHz, 1.9GHz, 2.1GHz, 2.3GHz, 2.4GHz, 2.5GHz, 2.6GHz
Frequency Range：1.55GHz ~ 2.7GHz
Antenna Type：Chip
Number of Bands：4
VSWR：3
Return Loss：-
Gain：2.98dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：Bluetooth, GPS, WCDMA, WiMax™
Power - Max：-

Antennas RF datasheet and documents for ACA-108-T

ACA-108-T

Antennas RF Overview

The ACA-108-T is a multiband chip antenna manufactured by Abracon LLC, designed for RF applications. It operates within a primary frequency range of 1575.0 to 2600.0 MHz, supporting wide-band requirements. The component is classified as an RF antenna and belongs to the ACA series. It utilizes a surface-mount device (SMD) termination type for integration into electronic circuits. The part status is officially documented as obsolete.

Antennas RF Feature Summary

Supports multiple frequency bands including cellular, PCS, navigation, and WiFi standards
Designed for compact surface-mount integration in wireless terminals

Antennas RF Applications

Cellular or PCS Terminal
GPS Navigation Systems
Bluetooth Devices
WCDMA Networks
WiMax Applications

Antennas RF Procurement Notes

Verify availability through authorized distributors as this component is marked obsolete. Confirm end-of-life status with the manufacturer before finalizing procurement plans. Ensure that any substitute components meet the required frequency range and form factor specifications for your specific application design.

Antennas RF Selection Notes

Consider the obsolete status when selecting this component for new designs. Evaluate alternative antennas from the same manufacturer or competitors that support similar frequency ranges. Check compatibility with existing PCB layouts and impedance matching requirements to ensure seamless integration if used in legacy systems.

Antennas RF Part Context

The ACA-108-T is part of Abracon's ACA series of RF antennas. It is specifically engineered for multiband communication needs. The component supports various wireless technologies, making it suitable for diverse mobile and network devices. Its compact size allows for efficient use of space in modern electronics.
