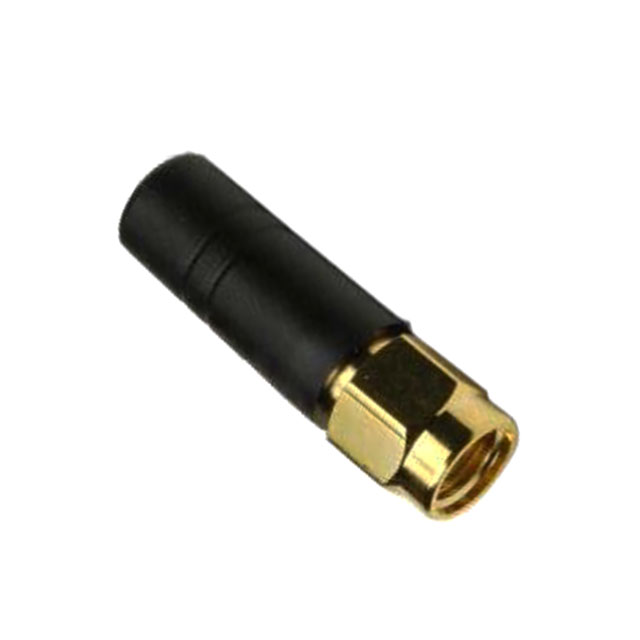

ACA-1SSRPP-2400

Description：RF ANT 2.4GHZ WHIP STR RP-SMA
Series：-
Mfr：Silicon Labs
Package：Bulk

SKU:044daf0d5c73 Category: RF Antennas Brand: Silicon Labs

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACA-1SSRPP-2400 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Silicon Labs. Its product description is RF ANT 2.4GHZ WHIP STR RP-SMA. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACA-1SSRPP-2400

Description：RF ANT 2.4GHZ WHIP STR RP-SMA
Series：-
Mfr：Silicon Labs
Package：Bulk
RF Family/Standard：WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.4GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Whip, Straight
Number of Bands：1
VSWR：1.138
Return Loss：-
Gain：0.6dB
Features：-
Termination：RP-SMA Female
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Connector Mount
Height (Max)：1.118" (28.40mm)
Applications：Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for ACA-1SSRPP-2400

ACA-1SSRPP-2400

Antennas RF Overview

The ACA-1SSRPP-2400 is a 1-inch straight whip antenna designed for Wi-Fi applications. It operates within the 2.4 GHz to 2.5 GHz frequency band and features an RP-SMA female connector for mounting. The component exhibits a voltage standing wave ratio (VSWR) of 1.138 across its operating band, indicating excellent impedance matching characteristics.

Antennas RF Feature Summary

Designed as a straight whip antenna for Wi-Fi connectivity
Features an RP-SMA female connector for secure mounting
Operates effectively within the 2.4 GHz to 2.5 GHz frequency range

Antennas RF Applications

Wi-Fi device integration
Zentri AMW007 module implementation
EFR32 wireless system deployment

Antennas RF Procurement Notes

Verify current availability status as this component has been designated End of Life with a Last Time Buy window. Confirm specific ordering suffixes against official documentation to ensure correct interface specifications. Validate compatibility with existing RF circuit designs before finalizing procurement decisions due to discontinued manufacturing status.

Antennas RF Selection Notes

Select this antenna for applications requiring a compact 1-inch form factor with reliable 2.4 GHz performance. Ensure the host device supports the RP-SMA female interface. Consider the EOL status when planning long-term production runs. Verify VSWR requirements align with the 1.138 specification for optimal signal integrity in Wi-Fi implementations.

Antennas RF Part Context

This antenna belongs to Silicon Labs' Zentri antenna product portfolio, often paired with modules like the AMW007. It serves as a dedicated RF radiating element for wireless Gecko series systems. The component provides a standardized mounting solution for embedded Wi-Fi connectivity in compact electronic devices.
