ACA-4HSRPP-2458

Antennas RF Overview

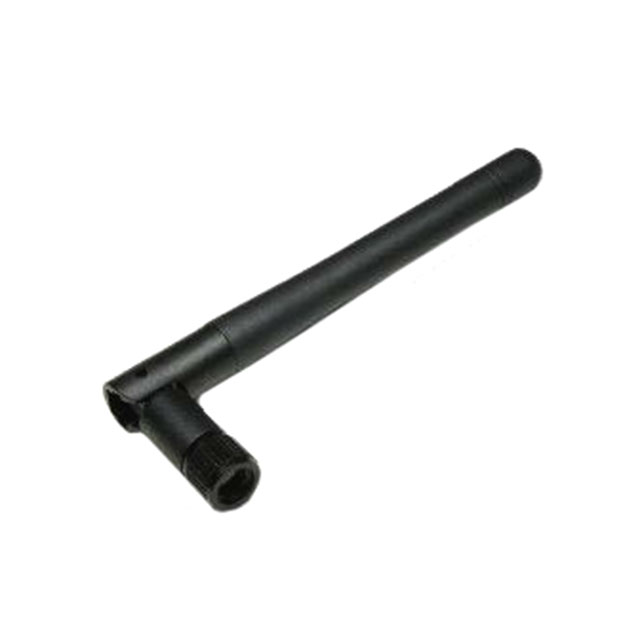

The ACA-4HSRPP-2458 is a dual-band whip antenna manufactured by Silicon Labs, designed for wireless communication applications. It operates across the 2.4 GHz and 5.8 GHz frequency ranges, specifically covering 2.4GHz to 2.5GHz and 5.2GHz to 5.8GHz. The component features a tilt RP-SMA female connector mount configuration, allowing for flexible orientation during installation. It provides a gain of 1dB and has a maximum height of 3.425 inches (87.00mm). The unit is RoHS compliant and lead-free, suitable for integration into Wi-Fi systems requiring compact, high-performance external antenna solutions.

Antennas RF Feature Summary

• Dual-band operation supporting both 2.4 GHz and 5.8 GHz wireless standards
• Tilt design with RP-SMA female connector for versatile mounting angles
• Compact whip form factor with integrated structural stability

Antennas RF Applications

• Wi-Fi network infrastructure devices
• Wireless access points and routers
• IoT gateways requiring dual-band connectivity

Antennas RF Procurement Notes

Verify that the specific order includes the RP-SMA female connector variant, as connector types can vary within product families. Confirm RoHS compliance status at the time of purchase to ensure adherence to current environmental regulations. Check mechanical dimensions against enclosure constraints, noting the 87.00mm height. Ensure the receiving facility has appropriate handling procedures for RF components to maintain signal integrity upon delivery.

Antennas RF Selection Notes

Select this model when dual-band coverage in the 2.4 GHz and 5.8 GHz bands is required for Wi-Fi applications. The tilt feature is advantageous for optimizing radiation patterns in constrained spaces. Compare against single-band alternatives if only one frequency range is needed. Consider the RP-SMA interface compatibility with existing board designs or cable assemblies before finalizing the selection.

Antennas RF Part Context

This antenna belongs to Silicon Labs' portfolio of RF components, often associated with their wireless Gecko ecosystem documentation. It is referenced in application notes regarding hardware design considerations for EFM32 and EFR32 series microcontrollers. The part serves as an external radiating element complementing internal transceiver capabilities in wireless modules.

Antennas RF Replacement Considerations

Public confirmed substitute part numbers are not available in the provided documentation. Users should consult official Silicon Labs resources for current equivalent listings or updated component recommendations.
