ACAG0201-2450-T

Antennas RF Overview

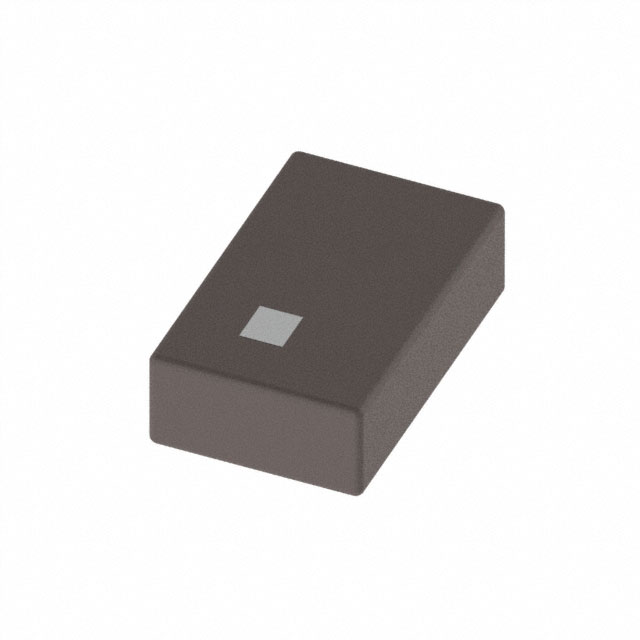

The Abracon ACAG0201-2450-T is a low-profile ceramic chip antenna designed for operation at the 2.45 GHz ISM band. It features a compact surface-mount package measuring 2mm x 1.25mm x 0.6mm with a standard 50 Ohm impedance. The component exhibits a typical bandwidth of 65 MHz and provides a gain of 2.7 dBi. This configuration supports efficient short-range wireless data transmission in space-constrained electronic designs.

Antennas RF Feature Summary

• Compact ceramic construction optimized for surface-mount assembly
• Designed for reliable performance within the 2.45 GHz frequency range
• Low profile geometry suitable for dense circuit board layouts

Antennas RF Applications

• Bluetooth connectivity modules
• Wi-Fi enabled devices
• Industrial, Scientific, and Medical (ISM) band equipment

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency and physical dimensions for your design. Confirm that the manufacturer's datasheet specifications align with your system's impedance and mounting requirements before finalizing procurement decisions.

Antennas RF Selection Notes

Select this component when a small form factor is critical for the application. Ensure the host circuit board can accommodate the specified footprint and that the operating environment does not exceed the thermal limits defined in the official documentation.

Antennas RF Part Context

This model belongs to Abracon’s line of ceramic chip antennas intended for RF applications. It serves as a passive radiating element for wireless communication systems requiring standardized 2.4 GHz band operation without the need for external matching networks.

Antennas RF Replacement Considerations

Consult official distributor databases for cross-reference information. Verify that any substitute component maintains identical electrical characteristics and physical dimensions to ensure compatibility with existing PCB layouts.
