ACAG0301-1575-T

Antennas RF Overview

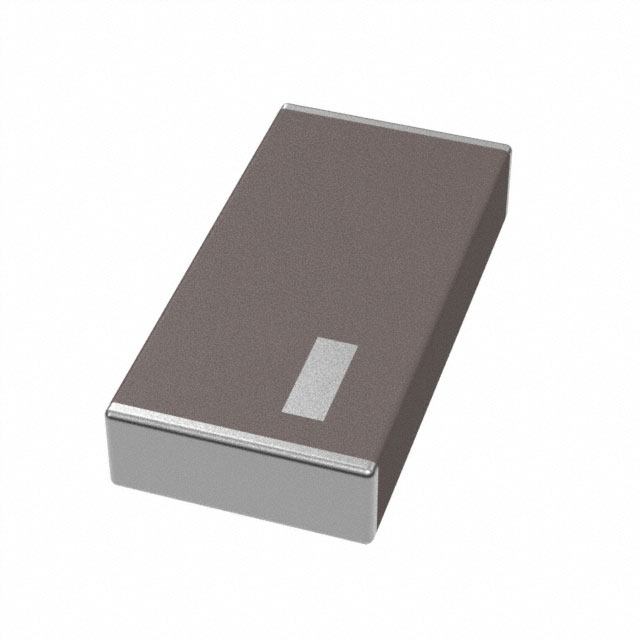

The ACAG0301-1575-T is a ceramic chip RF antenna manufactured by Abracon LLC, designed for Global Positioning System (GPS) applications. It operates at a center frequency of 1.575GHz with a bandwidth ranging from 1.565GHz to 1.585GHz. The component features a gain of 4.18dBi and a Voltage Standing Wave Ratio (VSWR) of 2. It utilizes surface mount technology for soldering and has a maximum height of 0.024 inches (0.60mm). The antenna is RoHS compliant and classified under the UHF frequency group.

Antennas RF Feature Summary

• Integrated ceramic construction optimized for GPS signal reception
• Surface mount design facilitates automated PCB assembly processes
• Compact form factor suitable for space-constrained navigation modules

Antennas RF Applications

• GPS navigation systems
• IoT devices requiring location tracking
• Automotive telematics units

Antennas RF Procurement Notes

Verify that the specific part number matches the required frequency band and gain specifications before procurement. Confirm compliance with RoHS standards if environmental regulations apply to the final product. Ensure the surface mount package dimensions align with the printed circuit board layout constraints. Check for any recent packaging updates or manufacturing changes documented in public notices.

Antennas RF Selection Notes

Select this component when a low-profile ceramic antenna is required for GPS L1 band operations. Consider the 4.18dBi gain and VSWR performance relative to system sensitivity requirements. Evaluate the surface mount compatibility against available assembly equipment. Compare physical dimensions against enclosure limitations to ensure proper fit within the device housing.

Antennas RF Part Context

This component belongs to Abracon's Tiny But Mighty collection, which focuses on navigational IoT antenna solutions. It is categorized as a passive chip antenna within the RF antennas segment. The series designation indicates its specific positioning within the manufacturer's portfolio of compact wireless components.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not provided in the source documentation. Verify electrical parameters such as frequency range and gain when evaluating alternative components from other manufacturers.
