ACAG0301-2450-T

Antennas RF Overview

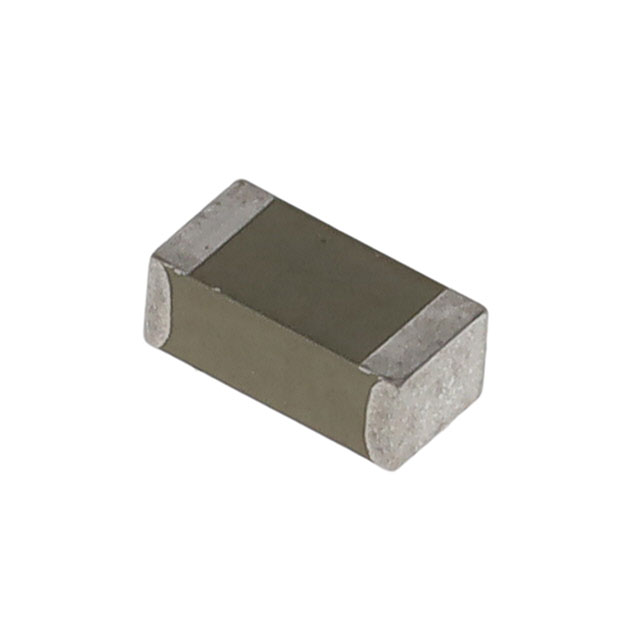

The Abracon ACAG0301-2450-T is a ceramic chip antenna designed for 2.45 GHz operations, utilizing Low Temperature Co-Fired Ceramic (LTCC) technology. It features a compact surface-mount package measuring 3.2 x 1.6 x 1.2 mm with a center frequency of 2.45 GHz and an impedance of 50 Ohms. The component supports protocols including Wi-Fi, Bluetooth, ZigBee, and ISM applications, ensuring low VSWR and compliance with RoHS standards.

Antennas RF Feature Summary

• Utilizes LTCC technology for advanced RF miniaturization
• Designed for multi-protocol wireless communication environments
• Features low VSWR for efficient signal transmission

Antennas RF Applications

• Wi-Fi modules
• Bluetooth devices
• ZigBee networks
• ISM band applications

Antennas RF Procurement Notes

Verify the specific datasheet revision to confirm mechanical tolerances and soldering profile requirements. Ensure compatibility with standard SMT reflow processes. Cross-reference the part number suffix to confirm it matches the required 2.45 GHz specification rather than other variants in the ACAG series.

Antennas RF Selection Notes

Select this component for designs requiring a small form factor antenna supporting multiple 2.45 GHz protocols. Consider the 3.2 x 1.6 mm footprint when planning PCB layout. Verify ground plane clearance requirements to maintain optimal radiation efficiency and impedance matching.

Antennas RF Part Context

This model belongs to the Abracon ACAG series of ceramic chip antennas. It represents a specialized solution for integrating wireless connectivity into space-constrained electronic devices without compromising signal integrity or requiring external components.

Antennas RF Replacement Considerations

Direct substitutes within the same series include the ACAG0301-5500-T for 5.8 GHz operations. Other models may offer different gain characteristics or frequencies but require careful evaluation of impedance and physical dimensions.
