ACAG0301-24505500-T

Antennas RF Overview

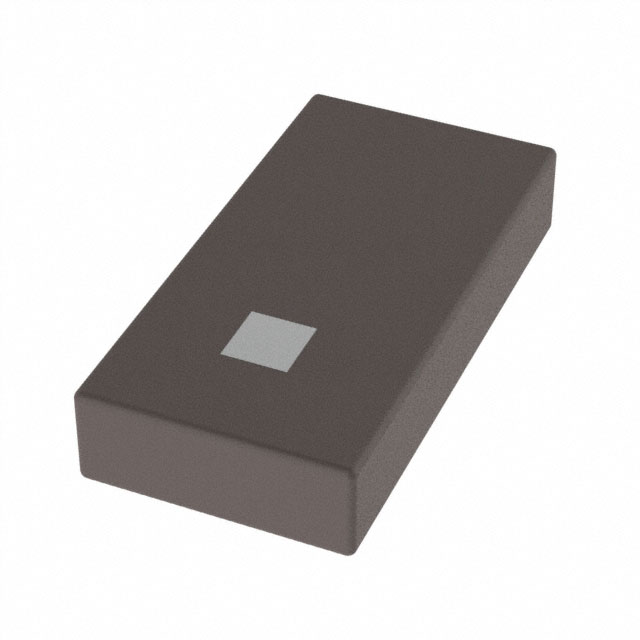

The ACAG0301-24505500-T is a dual-band ceramic chip antenna designed for Wi-Fi and Bluetooth applications. It operates across the 2.4 GHz and 5.85 GHz frequency ranges, supporting IEEE 802.11b/g/n and Bluetooth protocols. The component features a surface-mount package with dimensions of 3.2mm x 1.6mm x 1.2mm. Key electrical specifications include a return loss of -7dB at both bands and gains of 2.23dBi at 2.4GHz and 4.05dBi at 5.85GHz. It utilizes solder termination and is RoHS compliant.

Antennas RF Feature Summary

• Dual-band operation supporting simultaneous Wi-Fi and Bluetooth connectivity
• Miniaturized ceramic construction for embedded PCB integration
• Optimized gain performance across 2.4 GHz and 5.85 GHz bands

Antennas RF Applications

• Wireless LAN (WLAN) modules
• Bluetooth Low Energy (BLE) devices
• IoT sensor nodes requiring multi-protocol support

Antennas RF Procurement Notes

Verify the specific Abracon datasheet to confirm impedance matching requirements and recommended ground plane layout for optimal radiation efficiency. Ensure the ordering suffix matches the required tape-and-reel packaging configuration. Cross-reference the mechanical drawing for precise mounting tolerances and thermal considerations during reflow soldering processes.

Antennas RF Selection Notes

Select this component when space-constrained designs require integrated dual-band functionality without external RF switches. The 3.2x1.6mm footprint suits high-density PCB layouts. Consider the 50 Ohm impedance specification for compatibility with standard RF front-end components. Evaluate the height constraint of 1.2mm against enclosure clearance requirements.

Antennas RF Part Context

This part belongs to the Abracon ACAG series of passive internal antennas. It is specifically engineered for compact wireless communication devices where size and multi-standard support are critical. The series offers various tuning options for different protocol combinations, with this model focusing on the 2.4/5.8 GHz split.

Antennas RF Replacement Considerations

Direct substitutes within the same series may include variants with different tuning values or package sizes. Verify that any replacement maintains the 3.2x1.6mm footprint and dual-band coverage. Consult the manufacturer's cross-reference guide for electrically equivalent parts with updated manufacturing codes.
