ACAG0301-5500-T

$1.06

Description：RF ANT 5.5GHZ CHIP SOLDER SMD
Series：ACAG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)

SKU:007da5ad6c01 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACAG0301-5500-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 5.5GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACAG0301-5500-T

Description：RF ANT 5.5GHZ CHIP SOLDER SMD
Series：ACAG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：General ISM, WiFi
Frequency Group：SHF (f > 4GHz)
Frequency (Center/Band)：5.5GHz
Frequency Range：5.15GHz ~ 5.85GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：4.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.047" (1.20mm)
Applications：ISM, Wi-Fi, WLAN
Power - Max：-

Antennas RF datasheet and documents for ACAG0301-5500-T

ACAG0301-5500-T

Antennas RF Overview

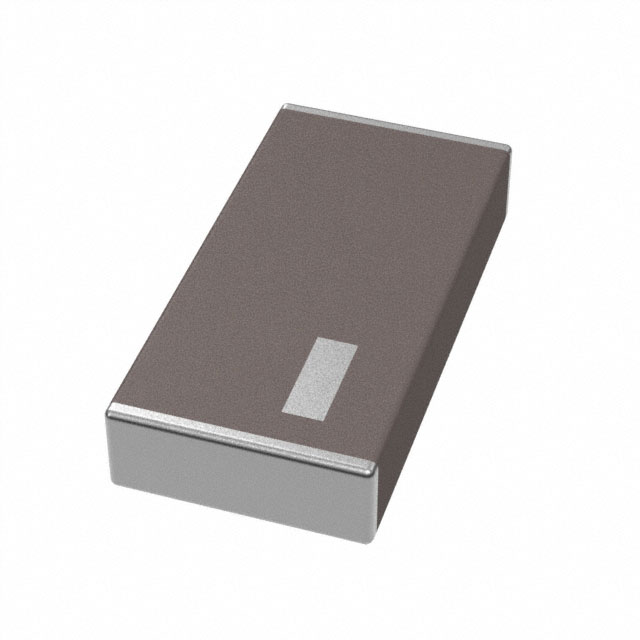

The Abracon ACAG0301-5500-T is a ceramic chip antenna designed for operation at 5.5 GHz. It measures 3.2 x 1.6 x 1.2 mm and utilizes low-temperature co-fired ceramic (LTCC) technology. The component features a gain of 4.5 dBi and maintains a VSWR of less than or equal to 2.0. It operates within a temperature range of -40°C to +85°C and is RoHS/RoHS II compliant.

Antennas RF Feature Summary

Utilizes LTCC technology for compact form factor
Provides high gain performance
Ensures low voltage standing wave ratio

Antennas RF Applications

Wireless LAN systems
Bluetooth devices
Zigbee networks

Antennas RF Procurement Notes

Verify the specific part number against manufacturer documentation to confirm electrical characteristics and compliance status. Ensure the procurement channel provides valid traceability for RoHS/RoHS II certification. Cross-reference technical specifications with official datasheets prior to integration into design projects.

Antennas RF Selection Notes

Select this component for applications requiring a small footprint and reliable performance in the 5.5 GHz band. Consider the operating temperature range and physical dimensions when designing PCB layouts. Evaluate compatibility with existing wireless protocols such as Bluetooth and Zigbee during the selection process.

Antennas RF Part Context

This model belongs to the ACAG0301 series of ceramic chip antennas from Abracon LLC. The series includes variants for different frequency bands, such as the 2.45 GHz version. These components are engineered for surface-mount technology and offer consistent performance across various wireless communication standards.
