ACAG0801-2450-T

$0.71

Description：RF ANT 2.45GHZ CHIP SOLDER SMD
Series：ACAG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:ecf057452cf2 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACAG0801-2450-T is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is RF ANT 2.45GHZ CHIP SOLDER SMD. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACAG0801-2450-T

Description：RF ANT 2.45GHZ CHIP SOLDER SMD
Series：ACAG
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：802.15.4, Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz)
Frequency (Center/Band)：2.45GHz
Frequency Range：2.4GHz ~ 2.5GHz
Antenna Type：Chip
Number of Bands：1
VSWR：2
Return Loss：-
Gain：7.29dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.039" (1.00mm)
Applications：Bluetooth, ISM, Wi-Fi, WLAN, Zigbee™
Power - Max：-

Antennas RF datasheet and documents for ACAG0801-2450-T

ACAG0801-2450-T

Antennas RF Overview

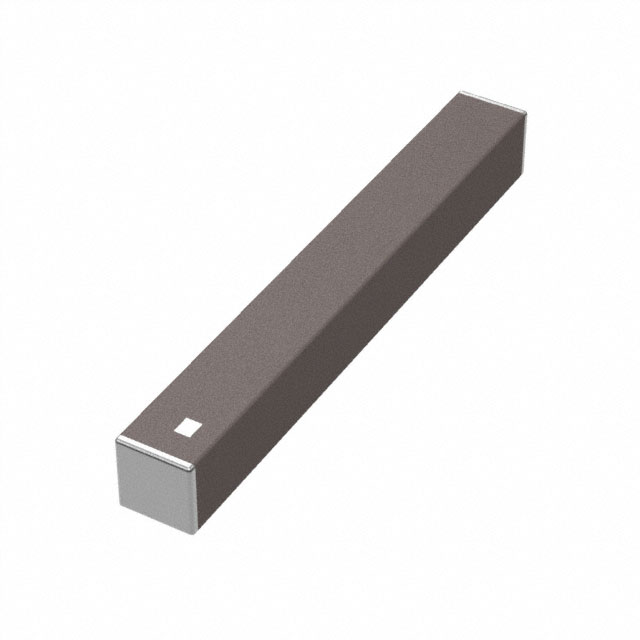

The Abracon ACAG0801-2450-T is a ceramic chip antenna designed for 2.4 GHz applications, specifically Bluetooth and Wi-Fi protocols. It operates within a frequency range of 2360 MHz to 2540 MHz with a center frequency of 2.45 GHz. The component features a high gain of 7.29 dBi and maintains a 50 Ohm impedance. It utilizes surface mount technology in an 8mm x 1mm x 1mm package. The antenna supports linear polarization and functions reliably across a temperature range of -40°C to +85°C.

Antennas RF Feature Summary

High gain performance of 7.29 dBi for enhanced signal transmission
Compact low-profile ceramic construction suitable for space-constrained designs
Omnidirectional radiation pattern with linear polarization
Operational stability across extended industrial temperature ranges

Antennas RF Applications

Bluetooth wireless communication modules
Wi-Fi embedded devices
2.4 GHz IoT sensor nodes
Internal antennas for compact consumer electronics

Antennas RF Procurement Notes

Verify the specific datasheet version and RoHS compliance status prior to ordering. Confirm that the 8mm x 1mm x 1mm package dimensions align with your PCB footprint requirements. Ensure thermal management strategies accommodate the specified operating temperature range during integration.

Antennas RF Selection Notes

Select this component when high gain is required within a minimal footprint constraint. It is appropriate for designs needing omnidirectional coverage at 2.4 GHz. Consider the surface mount profile for automated assembly processes. Validate impedance matching networks for optimal 50 Ohm performance in the final circuit layout.

Antennas RF Part Context

This part belongs to the Abracon ACAG series of internal chip antennas. It is engineered for integration into portable and embedded electronic systems requiring reliable short-range wireless connectivity. The design prioritizes size reduction while maintaining competitive RF performance metrics for standard 2.4 GHz protocol implementations.
