ACAJ-110-T

Antennas RF Overview

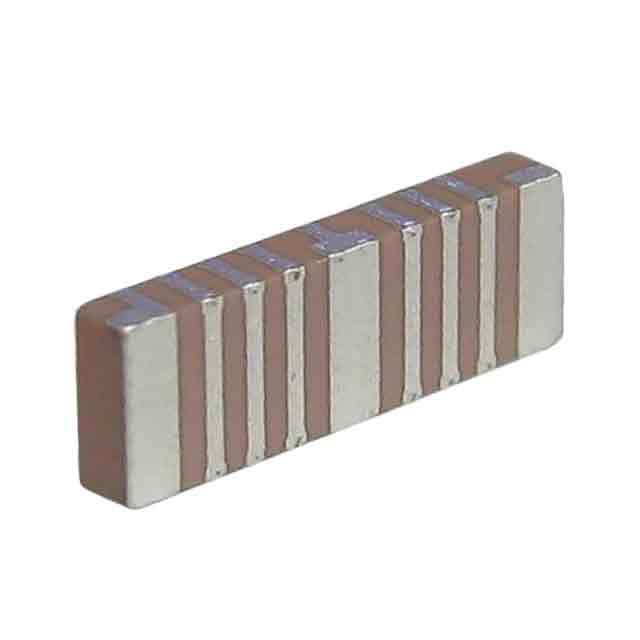

The Abracon ACAJ-110-T is a passive ceramic chip antenna designed for ISM applications. It operates within the 868 MHz to 915 MHz frequency range, supporting dual-band functionality. The component features a 50 Ohm impedance and a nominal gain of -2.7 dBi. Its physical dimensions are 9.0 mm in length by 3.0 mm in width, with a maximum height of 1.2 mm. The antenna exhibits a VSWR of 3:1 and utilizes linear polarization. It is rated for a minimum operating temperature of -35°C and employs surface mount adhesive mounting.

Antennas RF Feature Summary

• Dual-band operation covering 868 MHz and 915 MHz ISM frequencies
• Compact ceramic chip construction suitable for space-constrained PCB designs
• Linear polarization optimized for RFID and sub-GHz communication protocols

Antennas RF Applications

• RFID tag integration
• Sub-GHz wireless sensor networks
• ISM band data transmission modules

Antennas RF Procurement Notes

Verify the specific datasheet version when sourcing, as manufacturer documentation may contain updated mechanical tolerances or testing conditions. Confirm that the adhesive mounting style aligns with your assembly process requirements. Ensure the receiving facility handles ESD-sensitive components appropriately during storage and installation.

Antennas RF Selection Notes

Select this model when a low-profile solution is required for 868/915 MHz operations. The -2.7 dBi gain is typical for embedded chip antennas; ensure system link budgets account for this loss. Compare against ACAJ-109-T if cellular bands are needed instead of ISM frequencies. Verify ground plane clearance requirements on the host PCB to maintain the specified 3:1 VSWR performance.

Antennas RF Part Context

This component belongs to the Abracon ACAJ series of passive dielectric chip antennas. These parts are engineered for high-volume manufacturing and offer consistent electrical performance across production batches. The series supports various ISM and sub-GHz bands, providing designers with standardized form factors for rapid prototyping and deployment.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the provided documentation.
