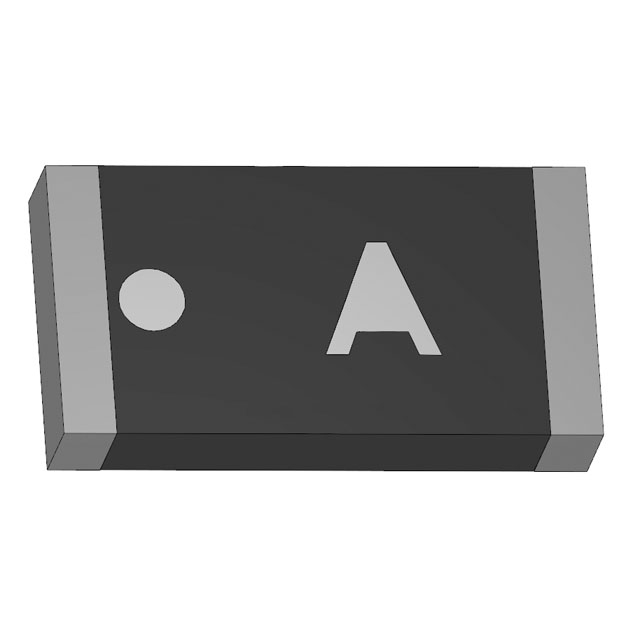

ACAR0301-SW2

$0.73

Description：LOW PROF DUAL BAND WIFI CHIP ANT
Series：ACAR
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:e1e11da2bb30 Category: RF Antennas Brand: Abracon LLC

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

ACAR0301-SW2 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is LOW PROF DUAL BAND WIFI CHIP ANT. Review the specifications below when checking this part for your BOM.

Antennas RF specifications for ACAR0301-SW2

Description：LOW PROF DUAL BAND WIFI CHIP ANT
Series：ACAR
Mfr：Abracon LLC
Package：Tape & Reel (TR),Cut Tape (CT)
RF Family/Standard：Bluetooth, General ISM, WiFi
Frequency Group：UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band)：2.45GHz, 5.4875GHz
Frequency Range：2.4GHz ~ 2.5GHz, 5.15GHz ~ 5.825GHz
Antenna Type：Chip
Number of Bands：2
VSWR：2
Return Loss：-10.04dB, -10.18dB, -10.19dB, -13.79dB, -15.71dB, -18.27dB
Gain：1dBi, 2.5dBi
Features：-
Termination：Solder
Ingress Protection：-
Grade：-
Qualification：-
Mounting Type：Surface Mount
Height (Max)：0.022" (0.55mm)
Applications：Bluetooth, ISM, Wi-Fi
Power - Max：-

Antennas RF datasheet and documents for ACAR0301-SW2

ACAR0301-SW2

Antennas RF Overview

The ACAR0301-SW2 is a low-profile dual-band Wi-Fi chip antenna manufactured by Abracon LLC. It supports Bluetooth, ISM, and Wi-Fi protocols across two frequency bands: 2.4GHz to 2.5GHz and 5.15GHz to 5.825GHz. The component features a surface mount edge center mount configuration with dimensions of 3.05 x 1.60 x 0.55 mm. Gain values are specified as 1dBi for the lower band and 2.5dBi for the upper band. The antenna exhibits a VSWR of 2 and utilizes solder termination. It operates within UHF and SHF frequency groups and complies with RoHS3 standards.

Antennas RF Feature Summary

Dual-band operation supporting both 2.4GHz and 5GHz wireless communication standards
Low-profile physical design suitable for space-constrained embedded applications
Edge center mount configuration for precise PCB integration

Antennas RF Applications

Bluetooth Low Energy (BLE) modules
Wi-Fi enabled IoT devices
Wireless LAN (WLAN) adapters

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical drawings prior to procurement to ensure compatibility with target PCB layout requirements. Confirm that the solder termination method aligns with available assembly processes. Check for updated environmental compliance documentation, specifically RoHS3 status, to meet regulatory standards in the destination market. Ensure storage conditions respect the moisture sensitivity level classification to prevent damage during handling.

Antennas RF Selection Notes

Select this component when a compact, dual-band solution is required for simultaneous or alternating 2.4GHz and 5GHz operations. The low profile and small footprint make it ideal for portable electronics where internal space is limited. Consider the gain specifications relative to the device's power output and desired range. Evaluate the edge center mount style against available board real estate and routing constraints to optimize signal integrity.

Antennas RF Part Context

This part belongs to the Abracon ACAR series of passive PCB antennas. It is designed for integration into modern wireless communication systems requiring reliable performance in dual-band environments. The series emphasizes miniaturization without compromising essential RF characteristics for consumer and industrial wireless applications.
