ACAR3005-C2WB

Antennas RF Overview

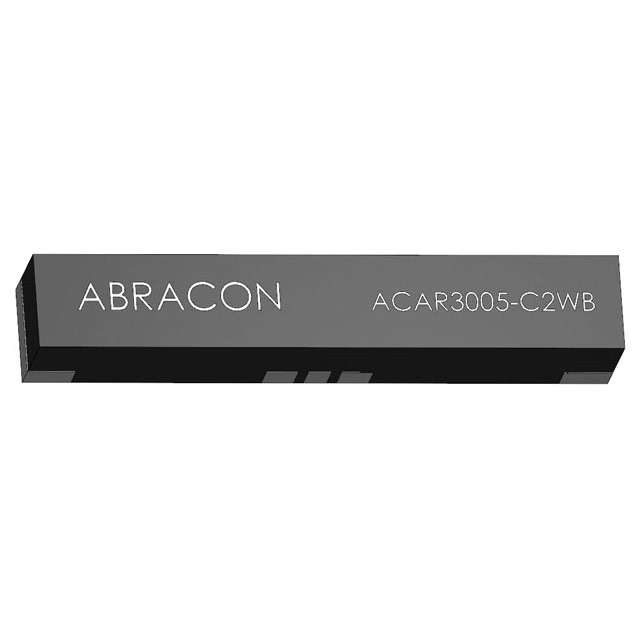

The ACAR3005-C2WB is a ceramic chip antenna designed for LPWA and WiFi applications. It operates across two frequency bands: 824-960 MHz and 2.4-2.5 GHz. The component features a gain of 2.61 dBi and utilizes a surface-mount solder package. Its physical dimensions are 30.0 mm x 5.0 mm x 5.0 mm, supporting edge mounting configurations. The device functions within an operating temperature range of -40°C to +85°C.

Antennas RF Feature Summary

• Supports dual-band operation for LPWA and WiFi protocols including Bluetooth, ISM, LoRa, Sigfox, Zigbee, and Wi-Fi.
• Utilizes a low-profile compact ceramic construction suitable for space-constrained designs.
• Features high gain performance optimized for reliable wireless communication.

Antennas RF Applications

• Low Power Wide Area (LPWA) network devices
• WiFi enabled consumer electronics
• IoT sensor modules requiring multi-protocol support

Antennas RF Procurement Notes

Verify the specific datasheet version and mechanical drawing details prior to integration. Confirm that the PCB layout matches the recommended ground plane and feed line specifications provided by Abracon. Ensure thermal management aligns with the stated operating temperature range during final assembly processes.

Antennas RF Selection Notes

Select this component when dual-band coverage for sub-GHz and 2.4 GHz ISM bands is required in a single footprint. The 30mm length necessitates adequate board real estate compared to standard 10mm or 16mm antennas. Evaluate the 2.61 dBi gain against system link budget requirements for optimal range performance.

Antennas RF Part Context

This part belongs to the ACAR series of ceramic chip antennas from Abracon LLC. These components are engineered for compact wireless modules where size constraints limit traditional whip or PCB trace antennas. The series supports various industrial and consumer IoT standards.

Antennas RF Replacement Considerations

No public confirmed substitute part numbers are available in the source documentation. Direct replacements require matching the 30x5x5 mm form factor, dual-band frequency coverage, and gain specifications to ensure RF compatibility.
