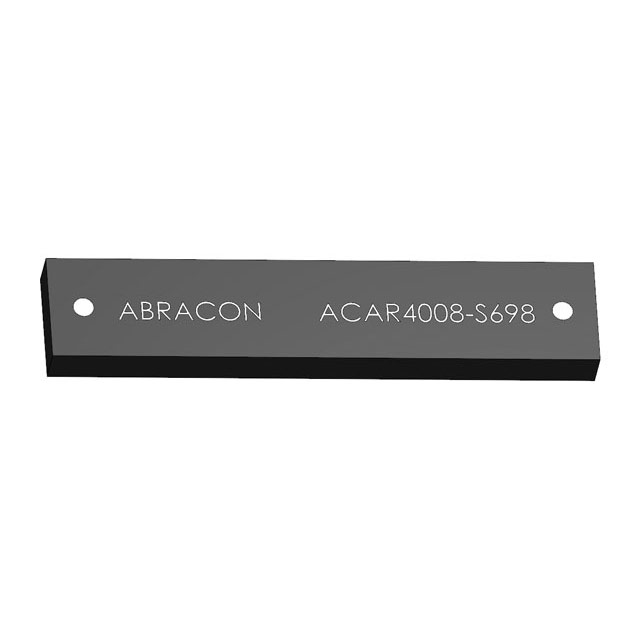

ACAR4008-S698 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Abracon LLC. Its product description is 4G/LTE CERAMIC CHIP ANT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACAR4008-S698
- Description：4G/LTE CERAMIC CHIP ANT
- Series：ACAR
- Mfr：Abracon LLC
- Package：Tape & Reel (TR),Cut Tape (CT)
- RF Family/Standard：Cellular
- Frequency Group：Wide Band
- Frequency (Center/Band)：830MHz, 1.94GHz, 2.6GHz
- Frequency Range：700MHz ~ 960MHz, 1.71GHz ~ 2.17GHz, 2.5GHz ~ 2.7GHz
- Antenna Type：Chip
- Number of Bands：3
- VSWR：4
- Return Loss：-
- Gain：-0.16dBi, -1.55dBi, 0.1dBi, 0.33dBi, 1.75dBi, 2.27dBi, 2.74dBi, 2.75dBi, 3.79dBi, 4.1dBi
- Features：-
- Termination：Solder
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Surface Mount
- Height (Max)：0.126" (3.20mm)
- Applications：2G, 3G, 4G, GSM, LTE
- Power - Max：-
Antennas RF datasheet and documents for ACAR4008-S698
Antennas RF Overview
The ACAR4008-S698 is a ceramic chip antenna designed for 4G/LTE and legacy cellular applications. It operates within a frequency range of 0.7 GHz to 2.7 GHz, supporting multiple bands including GSM, WCDMA, LTE, and NB-IoT. The component features linear polarization and is housed in a compact surface-mount package measuring 40 mm x 8 mm x 3.2 mm. It maintains functionality across an operating temperature range of -40°C to +85°C.
Antennas RF Feature Summary
- Supports multi-band cellular protocols including 2G, 3G, 4G, and NB-IoT
- Utilizes ceramic material for stable RF performance
- Designed for low-profile surface-mount PCB integration
Antennas RF Applications
- LTE mobile devices
- NB-IoT modules
- Cellular IoT gateways
Antennas RF Procurement Notes
Verify the specific datasheet version against the manufacturer's official documentation to confirm current electrical characteristics and mechanical tolerances. Ensure that the procurement source provides traceable origin information consistent with Abracon LLC authorized distribution channels to guarantee component authenticity and quality assurance.
Antennas RF Selection Notes
Select this component when a wide bandwidth covering sub-1 GHz through 2.7 GHz is required for unified cellular connectivity. The physical dimensions and mounting style must align with the target PCB layout constraints. Consider the thermal operating range requirements of the final assembly environment during the design phase.
Antennas RF Part Context
This part belongs to the ACAR series of chip antennas from Abracon Corporation. The series focuses on providing integrated solutions for wireless communication modules where space is limited. The model number indicates specific frequency tuning and packaging specifications unique to this variant within the broader product family.
Antennas RF Replacement Considerations
ACAR4008-S698-EVB serves as an evaluation board reference rather than a direct substitute. Cross-referencing requires matching the 40x8x3.2mm footprint, ceramic construction, and 0.7-2.7GHz operational range.
