ACB1608M-080-T

Overview

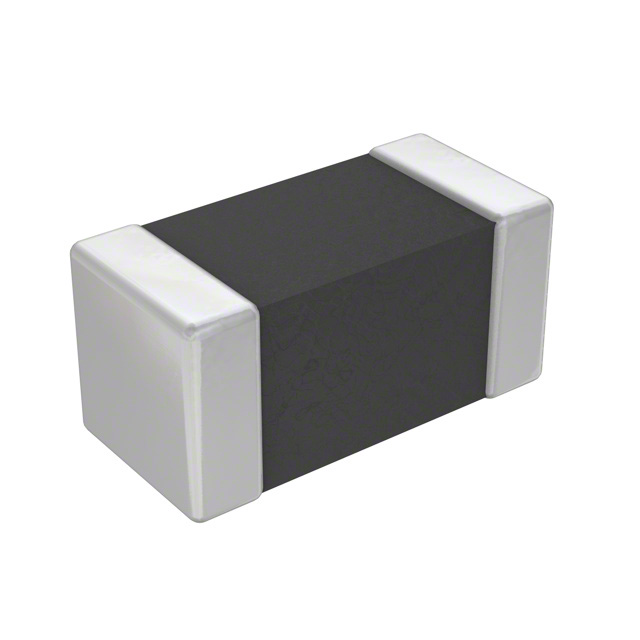

The TDK ACB1608M-080-T is a surface-mount ferrite bead designed for signal line noise suppression. It features an impedance of 80 Ohms at 100 MHz and a maximum DC resistance of 500 mOhm. The component utilizes a 0603 (1608 metric) package with dimensions of 1.6 mm length, 0.8 mm width, and a maximum height of 1.10 mm. It operates within a temperature range compliant with lead-free and RoHS standards.

Feature Summary

• Suppresses electromagnetic interference on signal lines
• Provides high impedance at target frequencies
• Low DC resistance for minimal signal loss

Applications

• Signal line filtering
• Noise suppression circuits
• Electromagnetic interference mitigation

Procurement Notes

Verify the specific impedance value and tolerance against the official TDK datasheet for the ACB1608M series. Confirm that the 0603 package dimensions and terminal configuration match your PCB footprint requirements. Ensure compliance with RoHS and lead-free specifications if required by your manufacturing process. Cross-reference the manufacturer part number to avoid confusion with similar series variants.

Selection Notes

Select this component when a compact solution for high-frequency noise attenuation is required in signal paths. The low DC resistance ensures efficient power transmission without significant voltage drop. Consider the thermal characteristics and current handling capabilities relative to the application's operational environment. Verify compatibility with automated pick-and-place equipment due to the small form factor.

Part Context

This ferrite bead belongs to TDK's ACB series, which focuses on compact chip filters for consumer electronics and industrial applications. The series is characterized by its ability to provide effective noise suppression in space-constrained designs. It serves as a critical passive component for maintaining signal integrity in high-speed digital and RF circuits.

Replacement Considerations

Consult TDK documentation for direct substitutes within the ACB series or equivalent offerings from other manufacturers. Ensure replacement parts match the 80 Ohm impedance at 100 MHz and the 0603 package size. Verify that alternative components meet the same DC resistance and temperature rating specifications.
