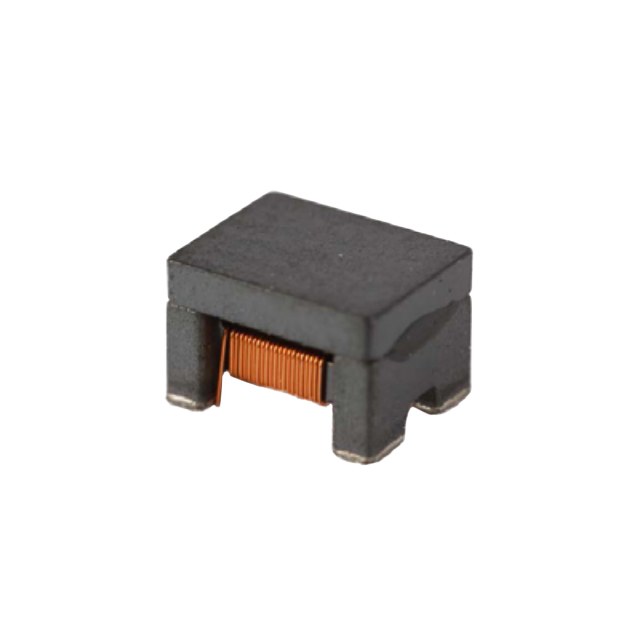

ACE2V3225-101-R

$1.56

Description：CMC 80UH 100MA 2LN 3KOHM SMD
Series：ACE2V3225
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:6c521a953761 Category: Common Mode Chokes Brand: Eaton - Electronics Division

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 80UH 100MA 2LN 3KOHM SMD
Series：ACE2V3225
Mfr：Eaton - Electronics Division
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Signal Line
Number of Lines：2
Current Rating (Max)：100mA
DC Resistance (DCR) (Max)：3.12Ohm
Voltage Rating - DC：50V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.130" L x 0.098" W (3.30mm x 2.50mm)
Height (Max)：0.098" (2.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：80 µH @ 100 kHz
Impedance @ Frequency：3 kOhms @ 10 MHz

Download product information

ACE2V3225-101-R

Overview

The ACE2V3225-101-R is an automotive-grade common-mode chip inductor manufactured by Eaton Electronics. It features a shielded surface-mount design compliant with OPEN Alliance 2.0 standards and holds AEC-Q200 qualification. The component provides 80 µH inductance with a tolerance of -30%/+50%. It supports a maximum DC current of 100 mA and exhibits a maximum DC resistance of 3.12 Ohms. Rated for a voltage of 50 V, it operates within a temperature range of -40°C to +125°C.

Feature Summary

AEC-Q200 qualified for automotive reliability
OPEN Alliance 2.0 compliance for network applications
Shielded SMD construction to minimize interference

Applications

Automotive Ethernet networks
1000 BASE-T interface protection
Common mode noise suppression in vehicle electronics

Procurement Notes

Verify the specific ordering suffix and packaging configuration against official distributor catalogs before purchase. Confirm that the selected variant matches the required inductance tolerance and current rating specifications. Ensure compatibility with automated pick-and-place equipment regarding the surface-mount package dimensions. Cross-reference the manufacturer part number with the latest datasheet to confirm availability and lead times.

Selection Notes

Select this component for designs requiring robust common-mode noise filtering in automotive environments. The AEC-Q200 certification ensures suitability for rigorous automotive thermal and mechanical stress conditions. Consider the 100 mA current rating when designing power paths for connected vehicle modules. The shielded structure aids in maintaining signal integrity for high-speed data lines.

Part Context

This component belongs to the ACE2V3225 series of common-mode chokes designed specifically for automotive connectivity. It addresses electromagnetic interference challenges in modern vehicles equipped with advanced driver-assistance systems. The series integrates magnetic materials optimized for high-frequency attenuation while maintaining compact footprint requirements for dense PCB layouts.
