ACF451832-220-TD01

Overview

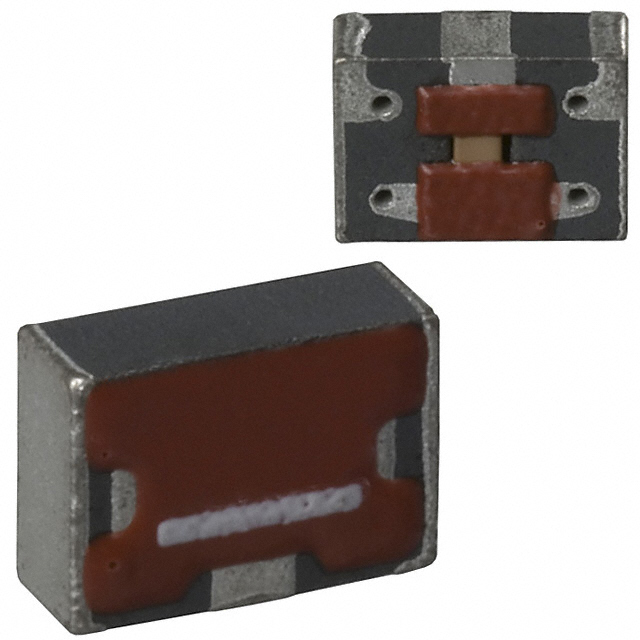

The ACF451832-220-TD01 is a signal line EMI filter manufactured by TDK Corporation. It utilizes an LC (T-type) circuit topology to suppress electromagnetic interference in electronic circuits. The component features a voltage rating of 50 V and a current rating of 300 mA. It operates within a temperature range of -25°C to +85°C. The device is housed in an 1812 surface-mount package, corresponding to the 4532 metric size. It has a cutoff frequency of 100 MHz. The part is currently obsolete and no longer in production.

Feature Summary

• Provides electromagnetic interference suppression for signal lines using an LC T-type network configuration
• Designed for surface-mount assembly in compact electronic layouts
• Rated for operation at 50 V DC with a maximum current capacity of 300 mA

Applications

• Signal line filtering in consumer electronics
• EMI suppression in embedded systems
• Noise reduction in data transmission interfaces

Procurement Notes

This component is officially listed as obsolete by the manufacturer. Availability is limited to existing stock or secondary market sources. Verify authenticity and condition carefully when sourcing from non-direct suppliers. Confirm that the specific suffix matches required specifications, as variants may exist. Check RoHS compliance status through official documentation before integration into new designs.

Selection Notes

Select this component only if legacy compatibility is required, as it is discontinued. Ensure the 1812 footprint fits the PCB layout constraints. Verify that the 300 mA current rating meets the application's peak load requirements. Consider the 50 V voltage limit for system safety margins. Evaluate alternative modern equivalents if designing new hardware to ensure long-term supply stability.

Part Context

The ACF451832 series represents TDK's line of surface-mount EMI filters. The 220 suffix typically denotes specific inductance values within this family. These components are engineered for high-frequency noise attenuation in space-constrained applications. The TD01 suffix indicates specific packaging and termination characteristics defined by the manufacturer for this product line.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult TDK technical support for current active replacements compatible with the ACF451832 series specifications.
