ACG0502U

Antennas RF Overview

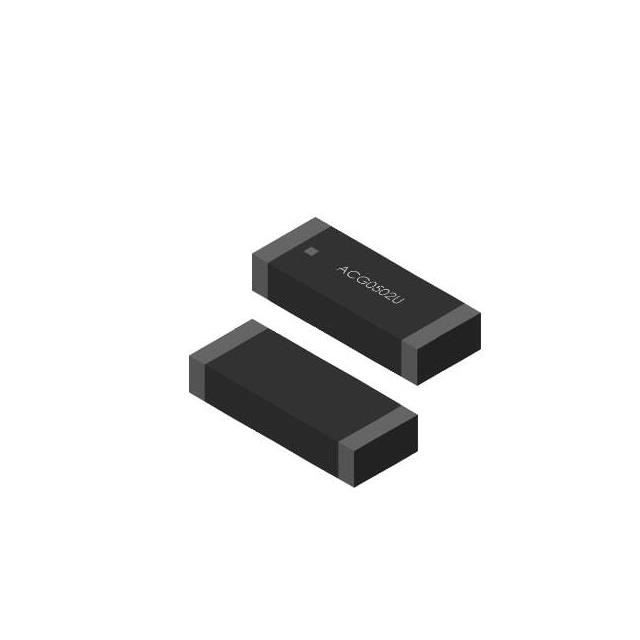

The ACG0502U is a surface-mount ultra-wideband chip antenna manufactured by Abracon LLC. It operates within the 3.7 GHz to 4.2 GHz frequency range, providing a bandwidth of 500 MHz. The component features a center frequency of 3.95 GHz and a nominal impedance of 50 ohms. Designed for IoT, UWB, and M2M applications, it supports linear polarization with a maximum VSWR of 2. The antenna utilizes a corner mount configuration and measures 5.2 mm x 2.0 mm x 1.0 mm. It functions reliably across an operating temperature range of -40°C to +105°C.

Antennas RF Feature Summary

• Designed for next-generation connectivity with fast and reliable data transmission capabilities in ultra-wideband networks.
• Utilizes a compact surface-mount package optimized for space-constrained internal installations.
• Engineered to support low-band UWB protocols for IoT and machine-to-machine communication.

Antennas RF Applications

• Ultra-Wideband (UWB) positioning and tracking systems
• Internet of Things (IoT) device connectivity
• Machine-to-Machine (M2M) communication modules

Antennas RF Procurement Notes

Verify the specific ordering suffix and packaging format required for your production line. Confirm that the component meets all relevant regulatory standards for the target market. Ensure compatibility with your PCB layout guidelines regarding ground plane clearance and mounting orientation. Check current availability through authorized distributors to align with manufacturing schedules.

Antennas RF Selection Notes

Select this component when a low-profile, corner-mount solution is required for UWB frequencies between 3.7 GHz and 4.2 GHz. Consider its wide operating temperature range for harsh environments. Evaluate the 50-ohm impedance match against your RF front-end design. Ensure the physical dimensions fit within the designated enclosure constraints.

Antennas RF Part Context

This part belongs to Abracon's family of Ultra Wide Band (UWB) chip antennas, which includes models such as the ACG0301U and ACG0806U. These solutions are designed to provide high-accuracy antenna performance for modern wireless connectivity standards. The series focuses on enabling reliable data transmission for emerging short-range wireless technologies.

Antennas RF Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Verify electrical compatibility and mechanical footprint before considering alternative components from other manufacturers.
