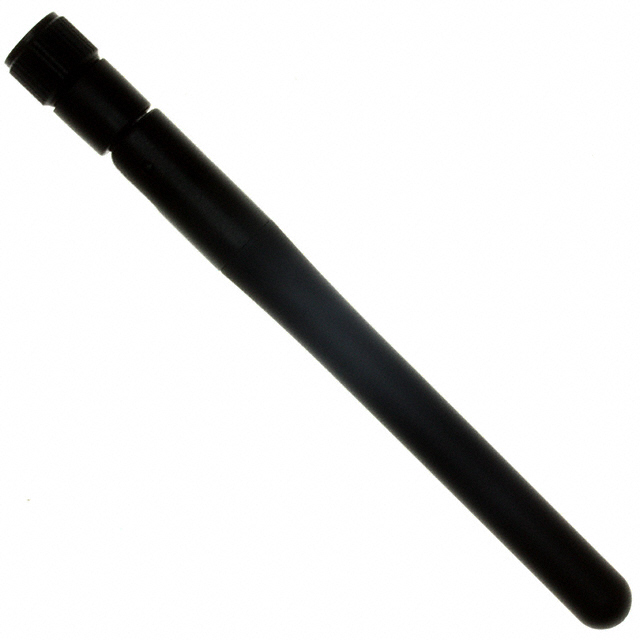

ACH2-AT-DP002-G is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quatech-Division of B&B Electronics. Its product description is RF ANT 2.4GHZ WHIP TILT RP-SMA. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACH2-AT-DP002-G
- Description：RF ANT 2.4GHZ WHIP TILT RP-SMA
- Series：Airborne™
- Mfr：Quatech-Division of B&B Electronics
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：-
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：-
- Return Loss：-
- Gain：2dBi
- Features：-
- Termination：RP-SMA Male
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Connector Mount
- Height (Max)：4.094" (104.00mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for ACH2-AT-DP002-G
Antennas RF Overview
The ACH2-AT-DP002-G is a 2.4 GHz RF antenna manufactured by Quatech, a division of B&B Electronics. This component features a whip design with a tilt mechanism and utilizes an RP-SMA connector for mounting. It is classified within the RF/IF and RFID product category, serving as a connectivity solution for wireless communication systems requiring flexible orientation adjustment.
Antennas RF Feature Summary
- Whip-style antenna construction
- Tilt mechanism for directional adjustment
- RP-SMA male connector interface
Antennas RF Applications
- Wireless communication system integration
- RF connectivity solutions
- Industrial networking hardware
Antennas RF Procurement Notes
Verify the specific part number against official Quatech or B&B Electronics documentation to ensure accuracy. Confirm that the RP-SMA connector type matches the receiving equipment interface requirements. Check for any RoHS compliance certifications if required by project specifications.
Antennas RF Selection Notes
Select this model when a 2.4 GHz frequency range is required with adjustable orientation capabilities. The tilt feature allows for optimizing signal directionality in fixed installations. Ensure the RP-SMA connector compatibility with existing system components before procurement.
Antennas RF Part Context
This antenna belongs to the ACH2 series from Quatech, which focuses on high-performance device networking and connectivity solutions. The series includes various whip and flat patch antennas designed for reliable wireless communication in industrial and commercial environments.
Antennas RF Replacement Considerations
The ACH2-AT-DP009-G is a documented alternative within the same product line, offering a flat patch design with an N connector instead of a whip and RP-SMA configuration.
