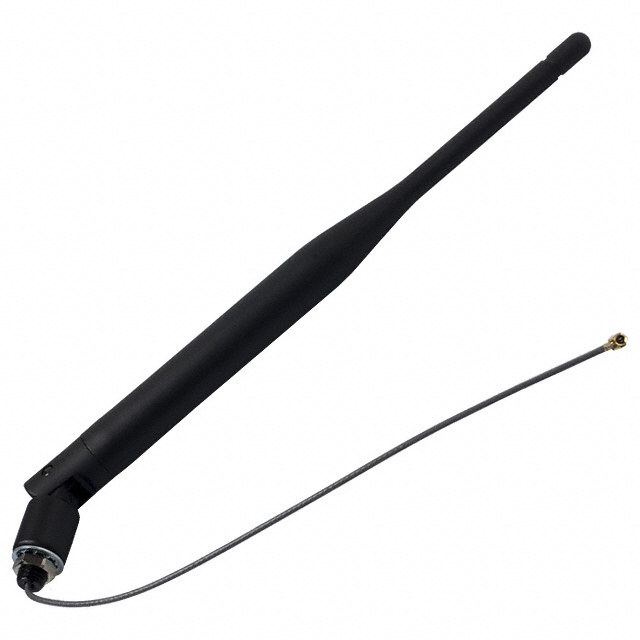

ACH2-AT-DP004 is listed in the Antennas RF range at ChipApex. The manufacturer field lists Quatech-Division of B&B Electronics. Its product description is RF ANT 2.4GHZ WHIP/TILT PANEL MT. Review the specifications below when checking this part for your BOM.
Antennas RF specifications for ACH2-AT-DP004
- Description：RF ANT 2.4GHZ WHIP/TILT PANEL MT
- Series：Airborne™
- Mfr：Quatech-Division of B&B Electronics
- Package：Bulk
- RF Family/Standard：-
- Frequency Group：UHF (2GHz ~ 3GHz)
- Frequency (Center/Band)：2.4GHz
- Frequency Range：2.4GHz ~ 2.5GHz
- Antenna Type：Whip, Tilt
- Number of Bands：1
- VSWR：2
- Return Loss：-
- Gain：5dBi
- Features：Cable - 1.37m
- Termination：U.FL (UMCC), I-PEX MHF1
- Ingress Protection：-
- Grade：-
- Qualification：-
- Mounting Type：Panel Mount
- Height (Max)：7.618" (193.50mm)
- Applications：-
- Power - Max：-
Antennas RF datasheet and documents for ACH2-AT-DP004
Antennas RF Overview
The ACH2-AT-DP004 is a 2.4 GHz RF antenna manufactured by Quatech, a division of B&B Electronics. It features a whip and tilt design suitable for panel mounting applications. The component operates within the industrial, scientific, and medical (ISM) radio band, providing wireless connectivity solutions for M2M communication systems.
Antennas RF Feature Summary
- Whip and tilt structural design for flexible orientation
- Panel mounting configuration for secure installation
- Optimized for 2.4 GHz ISM band operations
Antennas RF Applications
- Industrial M2M connectivity systems
- Wireless sensor network deployments
- Automated control cabinet installations
Antennas RF Procurement Notes
Verify manufacturer documentation to confirm exact electrical specifications and mechanical dimensions. Ensure compatibility with existing RF interfaces and mounting hardware before integration into final assemblies.
Antennas RF Selection Notes
Select this model when a ruggedized, panel-mountable antenna is required for 2.4 GHz wireless links. Consider the whip and tilt form factor for environments needing directional flexibility and stable physical attachment.
Antennas RF Part Context
Quatech, now part of B+B SmartWorx, specializes in wired and wireless M2M connectivity products. This antenna supports their portfolio of reliable industrial communication solutions designed for demanding operational environments.
Antennas RF Replacement Considerations
Consult official B&B Electronics catalogs for direct substitutes. Verify interface compatibility and frequency range alignment when evaluating alternative components from other manufacturers.
