ACH32C-100-T001

Description：FILTER LC(T) 10PF SMD
Series：ACH
Mfr：TDK Corporation
Package：Tape & Reel (TR)

SKU:11756c8f8415 Category: EMI/RFI Filters (LC, RC Networks) Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：FILTER LC(T) 10PF SMD
Series：ACH
Mfr：TDK Corporation
Package：Tape & Reel (TR)
Type：Low Pass
Filter Order：3rd
Technology：LC (T-Type)
Number of Channels：1
Center / Cutoff Frequency：-
Attenuation Value：-15dB @ 2GHz ~ 6GHz
Resistance - Channel (Ohms)：0.002
Values：C = 10pF
ESD Protection：No
Operating Temperature：-40°C ~ 125°C
Applications：General Purpose
Voltage - Rated：50V
Mounting Type：Surface Mount
Package / Case：1206 (3216 Metric), 3 PC Pad
Size / Dimension：0.126" L x 0.063" W (3.20mm x 1.60mm)
Height：0.091" (2.30mm)
Current：6:00 AM

Download product information

ACH32C-100-T001

Overview

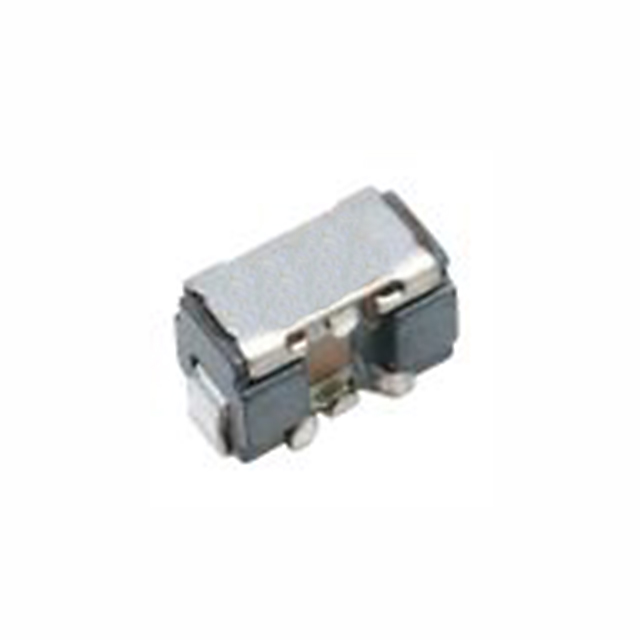

The TDK ACH32C-100-T001 is a surface-mount EMI filter circuit designed for power line applications. It features an LC (T) filter topology with a rated voltage of 50 V and a current rating of 6 A. The component utilizes a 1206 (3216 metric) package, measuring 3.2 mm in length, 1.6 mm in width, and 2.3 mm in height. It operates within a temperature range of -40°C to +125°C. The device provides attenuation of -20 dB at frequencies between 450 MHz and 1.3 GHz.

Feature Summary

Designed as a T-type EMC filter suitable for high-current circuits
Achieves excellent attenuation characteristics when used with stable grounds

Applications

General purpose EMI suppression
Power line filtering
High-current circuit protection

Procurement Notes

Verify the specific suffix and revision level against the manufacturer's latest documentation before procurement. Confirm that the component status aligns with project requirements, as availability may vary by region. Ensure that the operating environment meets the specified temperature and electrical ratings. Cross-reference the recommended alternatives if this specific part number is discontinued or restricted in certain markets.

Selection Notes

Select this component for applications requiring compact surface-mount EMI filtering in power lines. Consider the 6 A current rating and 50 V voltage limit during design. The T-type configuration requires stable grounding for optimal performance. Evaluate the frequency range of interest against the specified attenuation data to ensure effective noise suppression for the target application.

Part Context

This component belongs to the ACH series of three-terminal filters manufactured by TDK Electronics. These filters are specifically engineered for power line applications where space constraints and high current handling are critical. The series offers various capacitance values and attenuation profiles to suit different electromagnetic compatibility requirements in electronic systems.
