Product Detailed Parameters
- Description：CMC 330MA 2LN 200 OHM SMD
- Series：ACM-21
- Mfr：Abracon LLC
- Package：Tape & Reel (TR)
- Filter Type：Signal Line
- Number of Lines：2
- Current Rating (Max)：330mA
- DC Resistance (DCR) (Max)：350mOhm
- Voltage Rating - DC：50V
- Voltage Rating - AC：-
- Operating Temperature：-40°C ~ 85°C
- Ratings：-
- Approval Agency：-
- Features：-
- Mounting Type：Surface Mount
- Size / Dimension：0.079" L x 0.047" W (2.00mm x 1.20mm)
- Height (Max)：0.055" (1.40mm)
- Package / Case：Horizontal, 4 PC Pad
- Inductance @ Frequency：-
- Impedance @ Frequency：200 Ohms @ 100 MHz
- Qualification：-
- Grade：-
Download product information
Overview

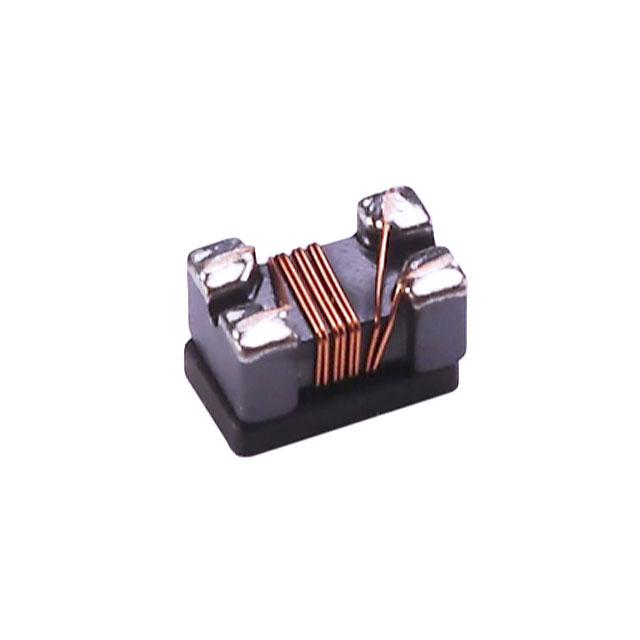

The ACM-21-201M-T is a two-line surface-mount common mode choke manufactured by Abracon LLC. It features an impedance of 200 Ohms at 100 MHz and supports a maximum DC current of 330 mA. The component has a maximum DC resistance (DCR) of 350 milliohms and operates within a temperature range of -40°C to +85°C. Its physical dimensions are 2.00 mm in length, 1.20 mm in width, and 1.40 mm in height.
Feature Summary
- Provides effective common mode noise suppression for high-speed signal lines
- Utilizes a compact horizontal surface-mount package for space-constrained designs
- Constructed with wirewound technology on a ferrite core
Applications
- High-speed data interface protection
- Signal line filtering in consumer electronics
- Noise suppression in portable devices
Procurement Notes
Verify the specific manufacturer part number against official Abracon documentation to ensure accuracy. Confirm that the required impedance, current rating, and package dimensions align with the design specifications before procurement. Check for RoHS compliance status if environmental regulations apply to the final assembly.
Selection Notes
Select this component when a low-profile, two-line filter is required for differential or single-ended signal lines. Ensure the operating current does not exceed the rated limit to prevent saturation. Verify that the impedance characteristic at the target frequency meets the noise attenuation requirements of the circuit.
Part Context
This component belongs to the ACM-21 series of chip wire wound common mode chokes from Abracon. The series offers various impedance and current ratings in a standardized small footprint, suitable for integration into modern electronic systems requiring efficient electromagnetic interference mitigation.
Replacement Considerations
Consult official Abracon documentation for verified substitute part numbers within the ACM-21 series or other compatible families. Ensure any replacement matches the electrical parameters and physical dimensions to maintain board compatibility.
