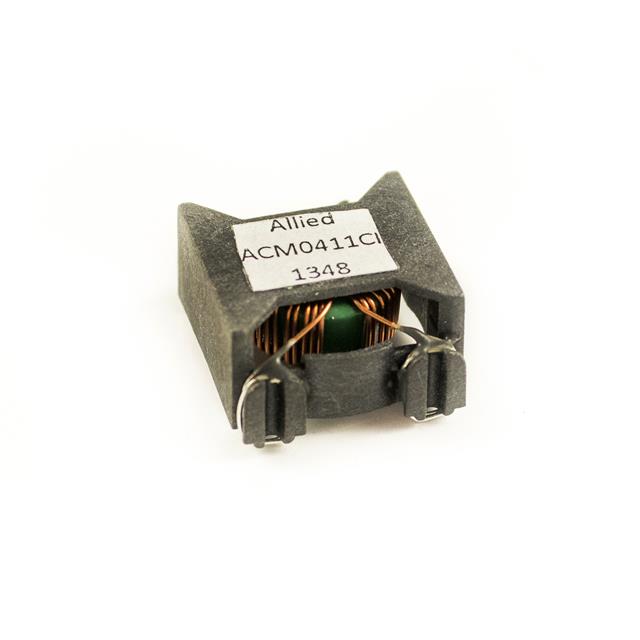

ACM0411CI

$2.98

Description：CMC 1.47MH 2.8A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:306940f6da25 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.47MH 2.8A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：2.8A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 130°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.670" L x 0.770" W (17.02mm x 19.56mm)
Height (Max)：0.390" (9.91mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：1.47 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

ACM0411CI

Overview

The ACM0411CI is a surface-mount common mode choke manufactured by Allied Components International. It features an inductance of 1.47 mH and a rated current capacity of 2.8 A. The component utilizes a two-line configuration designed for noise suppression applications. It complies with RoHS standards, indicating restricted hazardous substances. The device is packaged for automated surface-mount assembly processes.

Feature Summary

Provides common mode noise attenuation via dual-line magnetic coupling
Engineered for surface-mount technology integration
Compliant with RoHS environmental directives

Applications

Signal line noise filtering
Power supply input protection
Data bus interference suppression

Procurement Notes

Verify the complete part number ACM0411CI against official Allied Components International documentation to confirm specifications. Ensure the selected variant matches the required inductance and current ratings for the specific circuit design. Cross-reference datasheet details regarding package dimensions and terminal configurations prior to procurement.

Selection Notes

Select this component based on the requirement for 1.47 mH inductance at 2.8 A current handling. Evaluate the physical footprint compatibility with the printed circuit board layout. Confirm that the surface-mount package type aligns with the manufacturing assembly capabilities and soldering profiles utilized in the production environment.

Part Context

Allied Components International specializes in magnetic components including inductors and chokes. The ACM series represents their common mode choke offerings designed for electronic noise suppression. This manufacturer provides industry-standard magnetic solutions for various electronic applications requiring signal integrity maintenance.

Replacement Considerations

Consult official substitution guides from Allied Components International or equivalent manufacturers for verified alternatives. Ensure replacement parts match the 1.47 mH inductance and 2.8 A current rating. Verify package compatibility and electrical characteristics before implementing any substitute component.
