ACM0412CI

$2.98

Description：CMC 1.17MH 7.2A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)

SKU:0005150f9c55 Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 1.17MH 7.2A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tape & Reel (TR)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：7.2A
DC Resistance (DCR) (Max)：200mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 120°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.500" L x 0.500" W (12.70mm x 12.70mm)
Height (Max)：0.215" (5.46mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：1.17 mH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

ACM0412CI

Overview

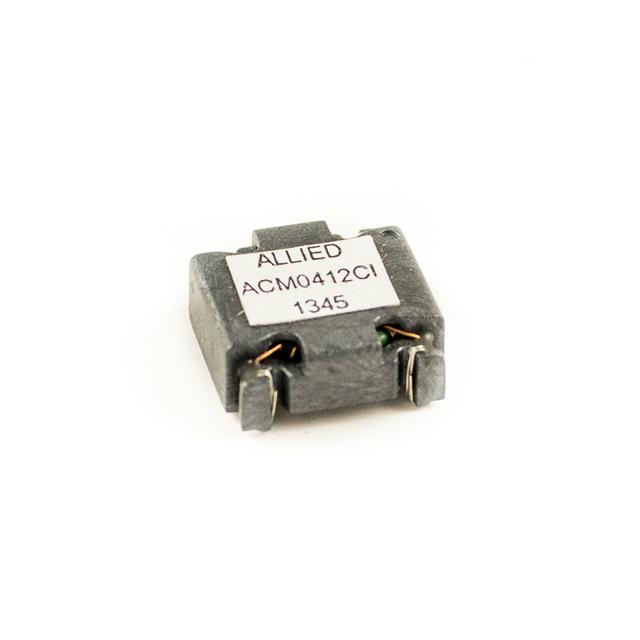

The ACM0412CI is a surface-mount common mode choke manufactured by Allied Components International. It features a horizontal mounting configuration with a four-pad footprint and supports two lines of operation. The component provides an inductance of 1.17 mH and handles a maximum current of 7.2 A. It operates within a temperature range of -40°C to +120°C.

Feature Summary

Horizontal surface-mount construction for automated assembly
Dual-line common mode filtering capability
High current handling capacity

Applications

Power conversion circuits
Telecommunications equipment
Networking hardware

Procurement Notes

Verify the specific part number ACM0412CI against official Allied Components International documentation to confirm electrical ratings and physical dimensions. Ensure compatibility with your board layout regarding the horizontal four-pad footprint. Request manufacturer certificates to validate authenticity and prevent counterfeit components.

Selection Notes

Select this component when a horizontal SMD common mode choke with high current capacity is required. Verify that the 1.17 mH inductance meets circuit noise suppression needs. Confirm the 7.2 A rating aligns with system power requirements and that the operating temperature range suits the environmental conditions.

Part Context

Allied Components International designs and manufactures magnetic components, including custom and standard transformers and chokes. The company has been active since 1992, providing products for commercial and industrial markets such as telecommunications and test equipment. This part belongs to their common mode choke series.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided source material. Consult the manufacturer for direct equivalents or verify pin-compatible alternatives based on identical electrical specifications and mechanical constraints.
