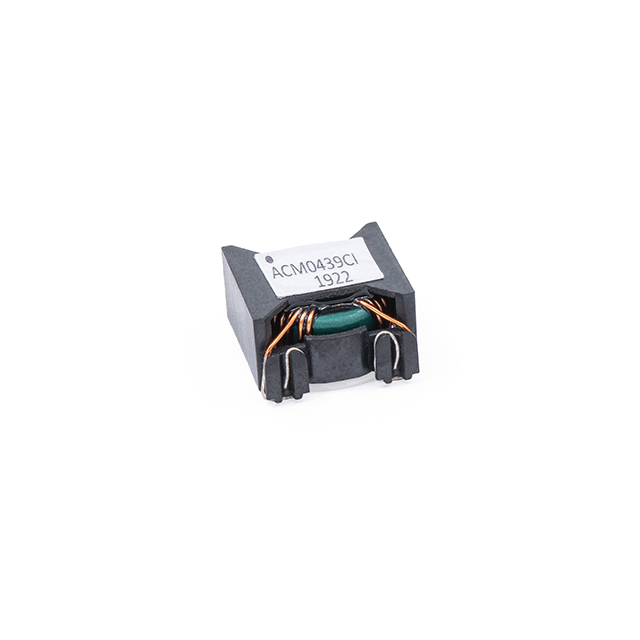

ACM0439CI

$3.19

Description：CMC 100UH 1.5A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tray

SKU:0885fcba9cdc Category: Common Mode Chokes Brand: Allied Components International

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 100UH 1.5A 2LN SMD
Series：-
Mfr：Allied Components International
Package：Tray
Filter Type：-
Number of Lines：2
Current Rating (Max)：1.5A
DC Resistance (DCR) (Max)：80mOhm
Voltage Rating - DC：-
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 85°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.787" L x 0.669" W (20.00mm x 17.00mm)
Height (Max)：0.413" (10.50mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：100 µH @ 10 kHz
Impedance @ Frequency：-
Qualification：-
Grade：-

Download product information

ACM0439CI

Overview

The ACM0439CI is a surface-mount common mode choke manufactured by Allied Components International. It features two lines with an inductance of 100 µH measured at 10 kHz and a maximum DC resistance of 80 mΩ. The component supports a maximum current rating of 1.5 A and operates within an industrial temperature range of -40°C to +85°C.

Feature Summary

High impedance design to minimize common mode noise
Excellent EMI performance characteristics
Industrial operating temperature range

Applications

Networking equipment
Telecommunications systems
Power conversion circuits

Procurement Notes

Verify the manufacturer designation as Allied Components International or Hitech Semiconductor Co., Limited, as sources vary. Confirm the package type is SMD and validate the 1.5A current rating against specific datasheet revisions before integration into final designs.

Selection Notes

Select this component for applications requiring compact surface-mount filtering solutions. Ensure the circuit environment stays within the -40°C to +85°C operational limits. Verify that the 100 µH inductance value meets the specific frequency requirements for noise suppression in the target application.

Part Context

Allied Components International specializes in custom and standard magnetic components. This part belongs to their common mode filter series, designed for commercial and industrial markets including test equipment and power supplies.

Replacement Considerations

Publicly confirmed substitute part numbers are not available in the provided documentation. Consult manufacturer cross-reference lists for verified alternatives.
