ACM12V-172-2PL-TL00

$1.57

Description：CMC 4.8A 2LN 1.7KOHM SMD AECQ200
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c76619c1d857 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 4.8A 2LN 1.7KOHM SMD AECQ200
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：4.8A
DC Resistance (DCR) (Max)：12mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max)：0.236" (6.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：1.7 kOhms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACM12V-172-2PL-TL00

Overview

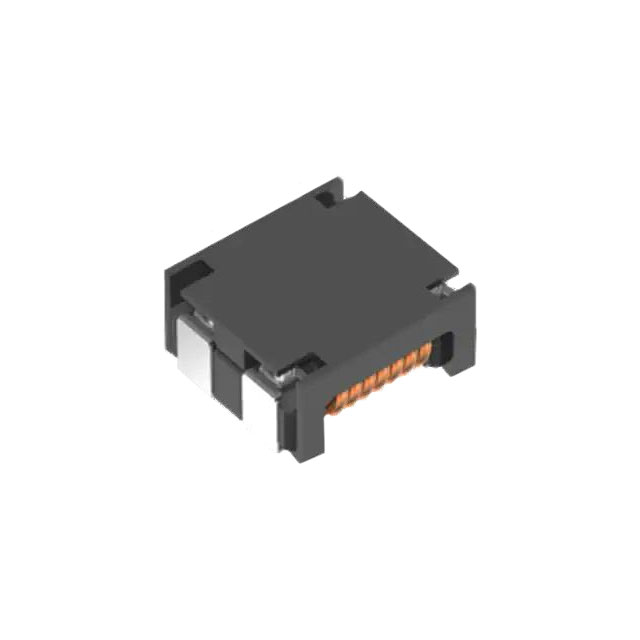

The ACM12V-172-2PL-TL00 is a common mode choke from TDK's ACM12V series, designed for automotive applications. It features a horizontal package with dimensions of 12.00mm x 11.00mm x 6.00mm max. The component operates within a temperature range of -40°C to +125°C and holds AEC-Q200 qualification. Key electrical specifications include a maximum DC current of 4.8A, a maximum DC resistance of 12 mOhms, and an impedance of 1100 Ohms at 100MHz.

Feature Summary

Utilizes exclusive square type closed magnetic cores to achieve miniaturization while maintaining performance characteristics.

Applications

Automotive power systems

Procurement Notes

Verify the specific part number ACM12V-172-2PL-TL00 against official TDK documentation to confirm ratings. Ensure compatibility with automotive environmental standards such as AEC-Q200. Cross-reference impedance and current values with the final design requirements before procurement.

Selection Notes

Select this component for space-constrained automotive designs requiring robust EMI suppression. The closed magnetic core structure aids in minimizing external magnetic interference. Verify that the 4.8A current rating and 12mOhm resistance meet the circuit's thermal and efficiency constraints.

Part Context

This component belongs to the ACM12V series of common mode chokes by TDK Corporation. The series is characterized by its compact horizontal footprint and suitability for high-current automotive environments. It represents a specialized solution for filtering noise in vehicle electrical architectures.

Replacement Considerations

Consult TDK's official substitution guide for verified alternatives. Ensure any replacement maintains the same package dimensions, current rating, and AEC-Q200 certification for automotive compliance.
