ACM12V-351-2PL-TL00

$1.84

Description：CMC 10A 2LN 350 OHM SMD AEC-Q200
Series：ACM
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:1b00c0097d18 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 10A 2LN 350 OHM SMD AEC-Q200
Series：ACM
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：10A
DC Resistance (DCR) (Max)：2.9mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：AEC-Q200
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max)：0.236" (6.00mm)
Package / Case：Horizontal, 4 PC Pad
Inductance @ Frequency：-
Impedance @ Frequency：350 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACM12V-351-2PL-TL00

Overview

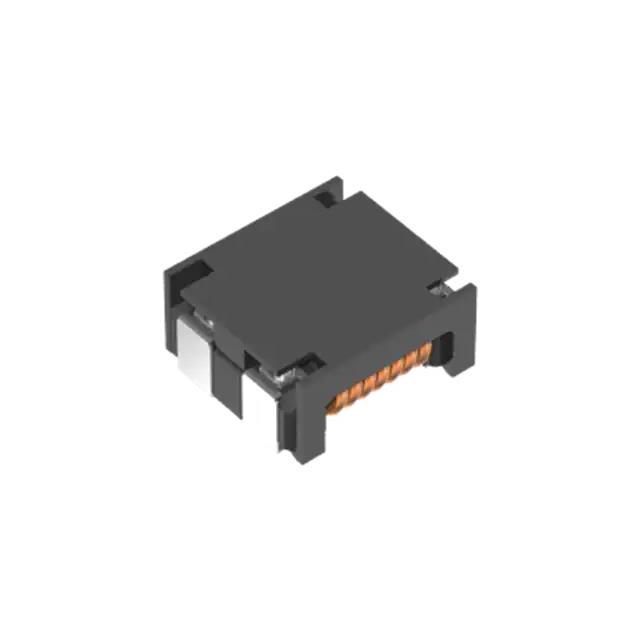

The TDK ACM12V-351-2PL-TL00 is a surface-mount common mode choke designed for automotive applications. It features a rated current of 10A and an impedance of 350 Ohms at 100MHz. The component operates within a temperature range of -40°C to +125°C and holds AEC-Q200 certification. Its physical dimensions are 12.00mm x 11.00mm with a maximum height of 6.00mm.

Feature Summary

Utilizes exclusive square type closed magnetic cores to achieve miniaturization while maintaining performance characteristics.

Applications

Automotive power systems

Procurement Notes

Verify the specific impedance value against official TDK documentation, as third-party sources may list conflicting ratings such as 700 Ohms or 350 Ohms for similar model variants. Confirm that the AEC-Q200 qualification status applies specifically to this part number before procurement.

Selection Notes

Select this component when high current handling up to 10A is required in space-constrained automotive environments. The closed magnetic core design offers effective noise suppression without significant size increase compared to open-core alternatives.

Part Context

This component belongs to the TDK ACM12V series of automotive-grade common mode chokes. The series is characterized by its square-type closed magnetic core construction, which supports miniaturization requirements for modern electronic control units and power distribution networks.

Replacement Considerations

Check TDK's ACM12V series datasheet for direct substitutes with different impedance values, such as the ACM12V-701-2PL-TL00, ensuring mechanical footprint compatibility and electrical rating alignment.
