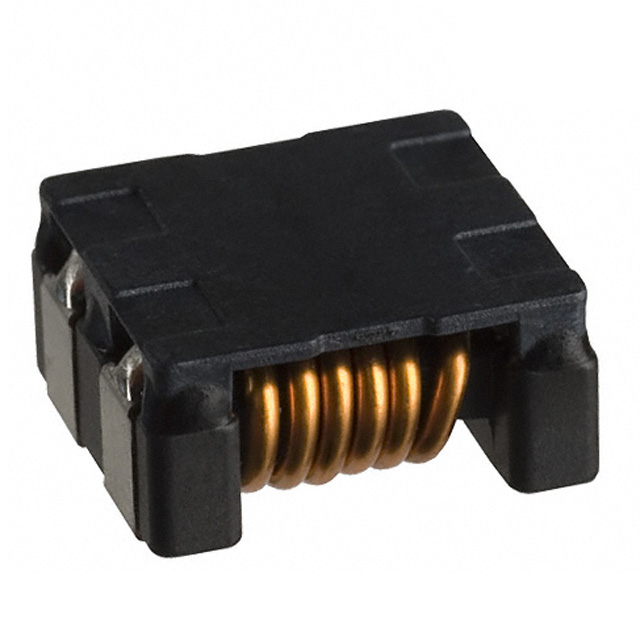

ACM12V-701-2PL-TL00

$1.57

Description：CMC 8A 2LN 700 OHM SURFACE MOUNT
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:c60f050b3d40 Category: Common Mode Chokes Brand: TDK Corporation

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：CMC 8A 2LN 700 OHM SURFACE MOUNT
Series：ACM-V
Mfr：TDK Corporation
Package：Tape & Reel (TR),Cut Tape (CT)
Filter Type：Power Line
Number of Lines：2
Current Rating (Max)：8A
DC Resistance (DCR) (Max)：6mOhm
Voltage Rating - DC：80V
Voltage Rating - AC：-
Operating Temperature：-40°C ~ 125°C
Ratings：-
Approval Agency：-
Features：-
Mounting Type：Surface Mount
Size / Dimension：0.472" L x 0.433" W (12.00mm x 11.00mm)
Height (Max)：0.236" (6.00mm)
Package / Case：Horizontal, 4 J-Lead
Inductance @ Frequency：-
Impedance @ Frequency：700 Ohms @ 100 MHz
Qualification：-
Grade：-

Download product information

ACM12V-701-2PL-TL00

Overview

The ACM12V-701-2PL-TL00 is a surface-mount common mode choke from TDK's ACM series, designed for high-current applications. It features a wirewound construction with a ferrite core and an AEC-Q200 automotive grade rating. The component has a rated current of 8A (up to 13A in some contexts) and a maximum DC resistance of 6 mΩ. It provides a common mode impedance of 700 Ohms at 100 MHz. The package dimensions are 12.00mm x 11.00mm with a maximum height of 6.00mm.

Feature Summary

Utilizes exclusive square type closed magnetic cores to achieve miniaturization while maintaining performance characteristics.

Applications

Industrial systems
Consumer electronics

Procurement Notes

Verify the specific datasheet version for the ACM12V-701-2PL-TL00, as rated current specifications may vary between 8A and 13A depending on the source document. Confirm RoHS compliance status and ensure the supplier provides official TDK documentation to validate the AEC-Q200 certification and exact impedance values at 100 MHz before integration.

Selection Notes

Select this component for circuits requiring high current handling with low DC resistance. The 12x11mm footprint offers a balance between size and power handling. Ensure the operating temperature range of -40°C to +125°C meets system requirements. The closed magnetic core design helps minimize electromagnetic interference emissions.

Part Context

This part belongs to TDK's ACM line of common mode chokes, which are characterized by their square-type closed magnetic cores. These components are engineered for surface mount technology and are suitable for filtering noise in power lines. The ACM series is widely used in automotive and industrial applications due to its robust construction and high current capabilities.

Replacement Considerations

Check for other parts within the ACM12V series or similar TDK offerings that match the 12x11mm footprint and 700 Ohm impedance. Verify if alternative models offer different current ratings or height profiles while maintaining the same electrical characteristics for direct substitution.
